| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | IC2.54-nP 24P |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Contact Material: | Brass | Contact Plating: | Gold/Tin Over Nickel |
|---|---|---|---|
| Withstanding Voltage: | 500V AC/minute | Termination: | Solder |
| Insulation Resistance: | 1000MΩ Min | Contact Shape: | Square Pin |
| High Light: | integrated circuit socket,ic chip socket |
||

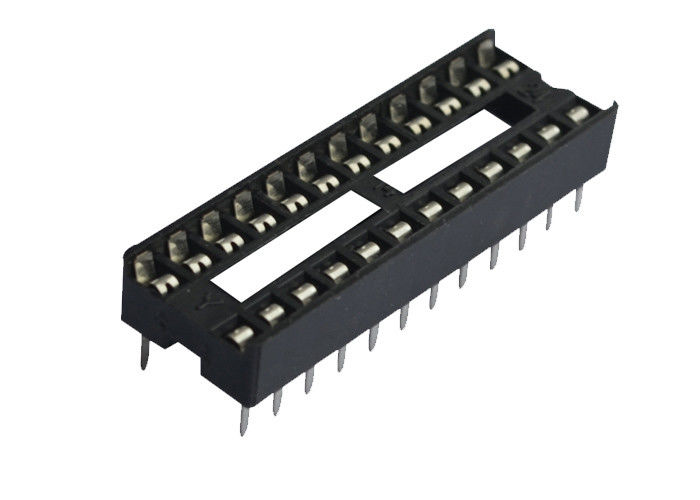

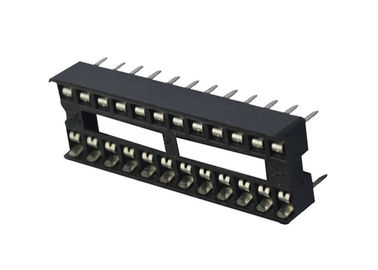

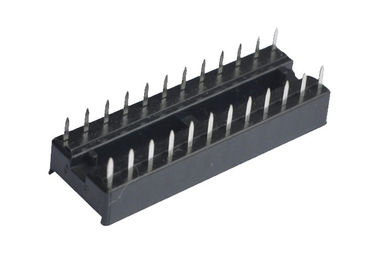

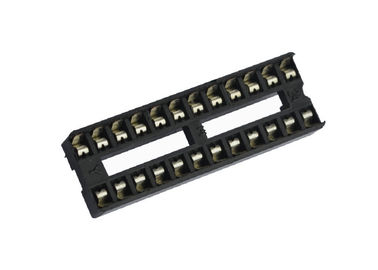

Square Hole Straight Integrated Circuit Socket 2.54mm 24 Pin Connector
|
Forces |
polished steel gauga Φ0.43mm |
|
Insertion |
200g Max/Pin, Withdrawal:60g Min/Pin |
|
Operation Temperature |
﹣40℃ to +105℃ |
|
Sleeve |
Brass CuZn36Pb3(C36000),Sn over Ni |
|
Contact Clip(4 finger) |
BeCu(C17200),Au Or Sn over Ni |
|
Insulator Material |
PPS+30%GF(UL94V-0) |
|
06~18P |
Insulatora without center bar |
|
20~28P |
Insulatora with center bar |
|
Item name:2.54mm IC Socket |
||
|
product features: the use of a wide range of environmental protection, explosion-proof, moisture-proof |
||
|
product material: (UL94V-0) PPS black +30%GF |
||
|
scope of application: used in all kinds of consumer electronic appliances, electronic communication, power and industrial control, medical equipment, automotive electronics, solar energy and other industries, with the most sophisticated and reliable connections for customers. |
Payment:
We can accept T/T, L/C, Western Union, and Money Gram, you can choose the way you like.
Please make sure that you have completed all the detailed information like contact person, address, zip code, and telephone number when filling in your information.
Delivery Time:
3 -7 days after receiving your payment(according to your quantity).
Feedback:
Buyer’s early confirmation will be highly appreciated after receiving the goods.
Because your feedback is vital to our business’s development, we sincerely invite you to leave positive feedback for us, if you are satisfied with our products and services.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: Which payment can be accepted?
A: 1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Q: Are you manufacture of trading company?
A: We are a manufacture in Shenzhen, China.
Q: How can we get a quote?
A: Please offer the specification of the product, such as part No. , quantity, drawing, etc.
