Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | IC2.54-nP 32P |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 2.54mm | Operating Temperature: | -40~105℃ |
|---|---|---|---|
| Application: | PCB Board | Insulator Material: | PBT/PA6T |
| Contact Material: | Brass | Contact Materials: | Gold/Tin Plating |
| Highlight: | integrated circuit socket,ic chip socket |
||

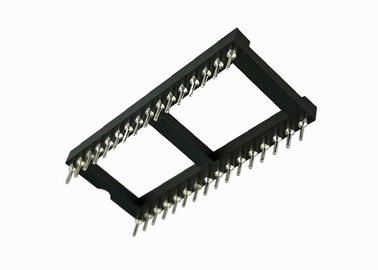

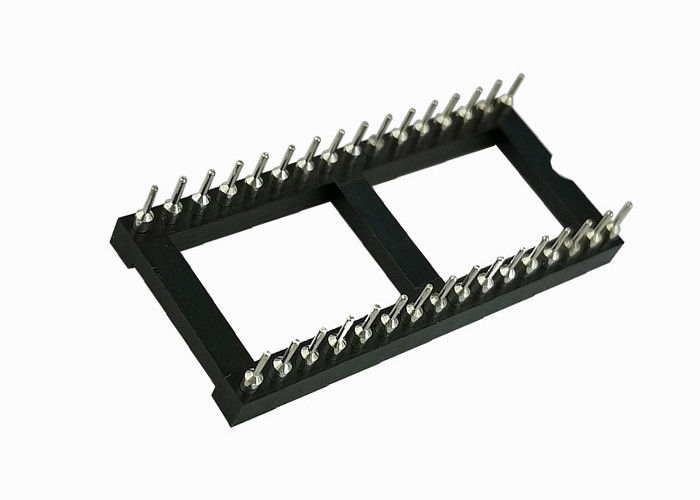

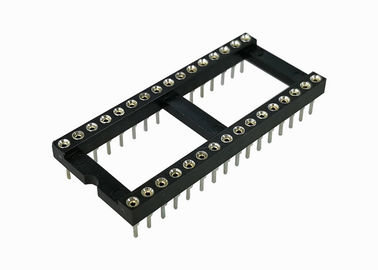

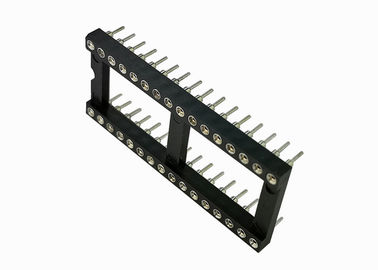

Brass Socket Ic 16 Pin 180°Two Row 2.54mm Pitch 7.62 Card Edge Connector
Type | DIP type |
Insulator Color | Black |
Insulator Flammability | UL 94V-0 |
Current Rating | 3A |
Contact Resistance(max) | 4m ohm Max |
Operating Voltage | 60V AC/DC |
Insulation Resistance(min) | 1000M ohm Min at DC 500V |
Contact materials | Gold/Tin plating |
Contact Plated | Tin or gold over nickel |
Insulator material | PA6T |
Processing Temperature | -40~105℃ |
Packing | Tray Packing |
OEM/ODM | Accepted |
Description
Item name: IC Connector
product features: the use of a wide range of environmental protection, explosion-proof, moisture-proof
product material: (UL94V-0) PPS black +30%GF
scope of application: used in all kinds of consumer electronic appliances, electronic communication, power and industrial control, medical equipment, automotive electronics, solar energy and other industries, with the most sophisticated and reliable connections for customers.
Category
1. According to the spacing: 1.0mm, 1.27mm, 2.0mm, 2.54mm.
2. No. of pins: 2~80 pins.
3. Installation mode: straight, right angle, SMT.
4. According to the height and quantity of plastic (such as single plastic, double plastic, three plastic, etc.).
5. According to the number of rows, it is divided into single row, double row, three row and four row. At present, there are only four rows at most;
6. According to the installation mode of layout, it is mainly divided into 180 degrees, 90 degrees, SMT(vertical mount SMT, horizontal SMT and right angle SMT);
7. According to whether it needs to be increased and whether it needs to be divided with positioning columns, there are two kinds of positioning columns: one is the internal positioning column, the other is the ear positioning column.
FAQ
Q1. Can I have a sample order for Connector?
