| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | RFH1.27*3.8-1*nW 10W |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 1.27mm | Contact Shape: | Square Pin |
|---|---|---|---|
| Packing: | Tray Packing | Insulator Material: | PA6T//PA9T/LCP |
| Processing Temperature: | 260±5℃ For 10 Seconds | Plastic Height: | 3.8mm |
| High Light: | round female pin header,machine pin headers |
||

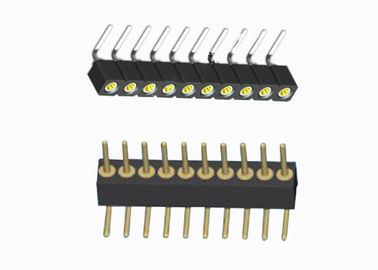

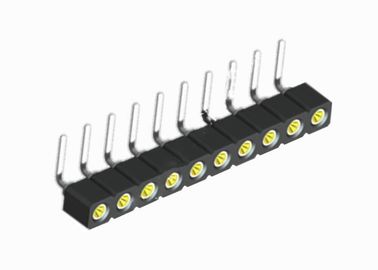

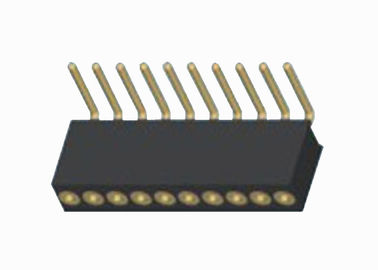

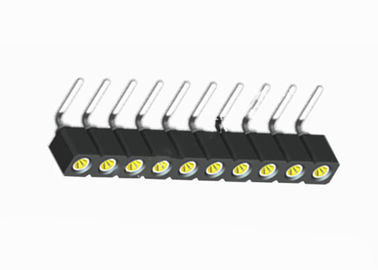

16 Pin Black Round Female Header Connector 1.27mm Single Row Right Angle
| Current Rating | 1.0AMP |
| Contact Resistance | 20mΩ Max |
| Withstand Voltage | 500V AC/DC |
| Insulation Resistance | 1000mΩ Min |
| Operation Temperature | ﹣40℃ to +105℃ |
| Contact Material | phosphor Bronze |
| Contact Plating | AU over Ni |
| Insulator Material | PA9T+30％GF UL94V-0 |
Item name: round female connector
1. product features: Female header connector is a kind of connector.
2. product material: PA9T/PBT/ brass or phosphor bronze insulation material: plastic UL 94V-0.
3. scope of application: widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection.
Category
1. According to the spacing: 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm.
2. According to whether it has convex points, the convex points are divided into half convex and full convex.
3. According to the number of rows: single row, double row, three row, four row, etc. at present, there are only four rows at most.
4. According to the installation mode, 180 degrees are represented by s, 90 degrees by W, and SMT by T.
5. According to whether it needs to be increased or not, whether it needs to be divided with positioning columns, there are two kinds of positioning columns, one is the internal positioning column and the other is the ear positioning column.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q. which payment can be accepted:
A: 1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Q: What’s the delivery time?
A: It usually takes about 3~7 working days to produce the products.
RealRun always regards quality as corporate life, adheres to the business philosophy of the quality to the market, the management to benefit and the leading innovation and brand strategy. Since the company established,we have payed attention to the management specification and high quality requirements, now have passed ISO9001 quality management system certification, all products are according with the UR RoHS and REACH the environmental protection requirements.
