| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | RFH2.54*4.2-2*nP 16P |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 2.54mm | Current Rating: | 2A |
|---|---|---|---|
| Contact Resistance(max): | 20M Ohm | Insulation Resistance(min): | 1000M Ohm |
| Insulator Flammability: | UL 94V-0 | Withstanding Voltage: | 500AC |
| Highlight: | male and female headers,machine pin headers |
||

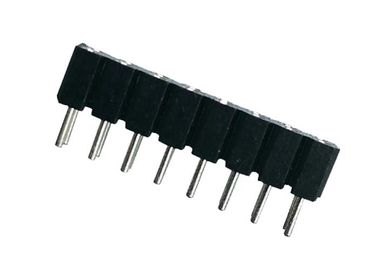

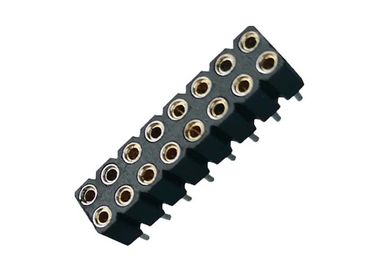

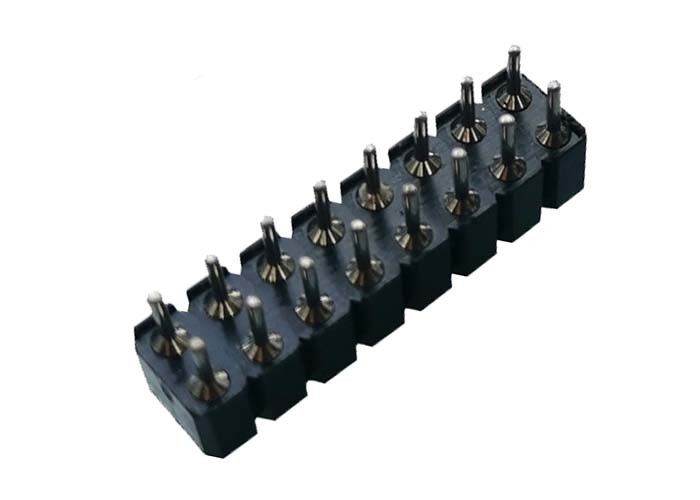

Machined Round Female Pin Header Connector DIP PPS 2.54mm 180° UL94V 0
Specifications
1. Pitch:2.0mm(0.1'')
2. Connector Name: PCB Connector/Female Pin Header
3. Insulation Material:PA9T UL 94-V0
4. Contact Material: Copper Alloy
5: Mounting Type: Through Hole
6: Number of Row: Four Row
7: Contact Finish: Gold Over Nickel
8: Termination: Solder
9: Color:White
10: Current Rating:2A
11: Withstand Voltage:500V AC/DC
12: Contact Resistance:20mΩ Max
13: Pin Length: Customization
14: Pin Available:2Pins to 80Pins
15. Number of Row:3Rows
16. Fastening Type:Push-Pull
17. Style:Board to Board
18. Contact Type:Female Socket
19. Platic Height: 6.35mm
| Product name: 2.0mm female pin connector | ||
| 1. product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance. | ||
| 2. product function :Its function is to act as a bridge between the blocked or isolated circuits, and to take on the task of current or signal transmission. | ||
| 3. scope of application: It is used together with the pin header to form the board to board connection; or it is used together with the electron beam end to form the board to line connection; it can also be used independently for the board to board connection. |
Packaging Details
Most product not have MOQ,the common connectors are in stock.Small order can be accepted.
Box/Tape & Reel/ Tray/ Tube/ PE Bag.
special Packing depend on customer.
Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method;
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.
Payment
Our company accept T/T, Western union, Paypal, Alipay for payment, Please inform us if you have a prefer payment way.
Why choose RealRun
1. Professional R & D, production, sales as one of the industrial companies;
2. With advanced production equipment and testing equipment abroad, with advanced product design, development and manufacturing capabilities;
3. Through ISO9001, ISO14001, ROHS, CE, reach, UL certification;
4. Main board to board, board to line, line to line, I / O, IC base, storage connector;
5. The products are widely used in mobile devices, LED displays, computer peripherals, automobile peripherals, power peripherals, medical equipment, household appliances and monitoring equipment, TV and TV set-top boxes, instruments and meters, network peripherals and other equipment products.
