Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | DB-nP 9P Male |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Brand Name: | RealRun | Place Of Origin: | GuangDong, China |
|---|---|---|---|
| Circuits: | 4~68P | Color: | Black/Blue/White |
| Shell: | Stell, Nickel Plated | Insulator Material: | PBT+30%GlassFiber, (UL94V-0) |
| Contact Plating: | Tin Over Gold | Contact: | Brass |
| Current Rating: | 5 Amp | Insulation Resistance: | 1000 MΩ Min. At DC 500V |
| Dielectric Strength: | 500V For One Minute | Operation Temperature: | -55℃ To +105℃ |
| High Light: | Straight Solder D Sub Male Connector,DB 9P D Sub Male Connector,PBT 9 Pin Male Connector |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

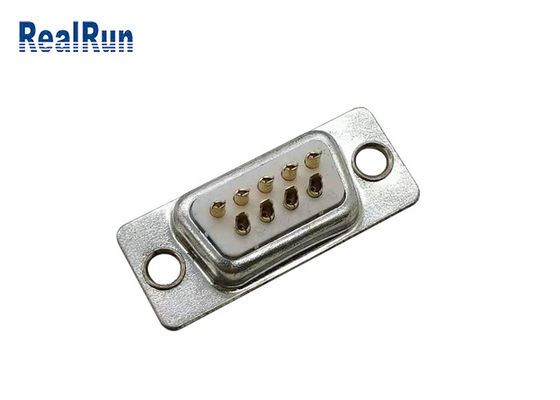

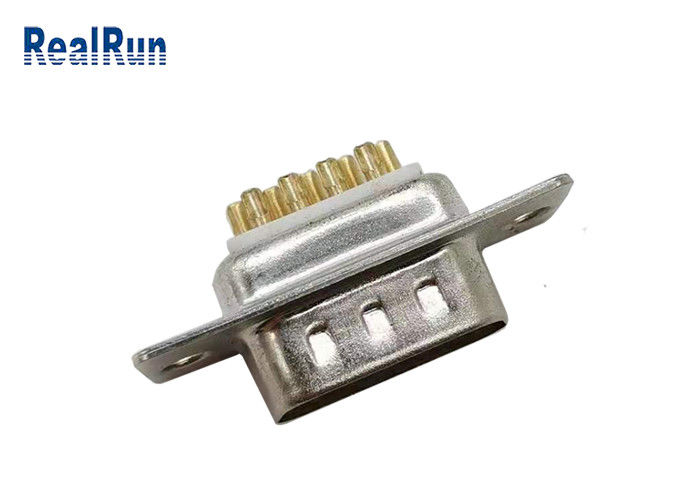

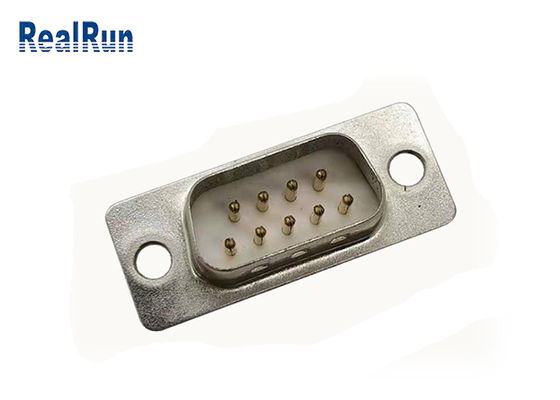

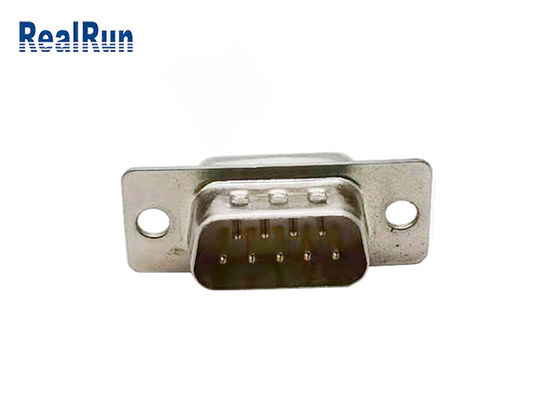

Gold Plated D Sub Connector DB 9P 180° Straight Solder Type Male Connector
| Name | D SUB Connector |
| Male/Female | Male type |
| Type | Solder type |
| Shell | Stell, Nickel Plated |
| Insulator Color | White |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 5 Amp |
| Contact | Brass |
| Operation Temperature | -55℃ to +105℃ |
| Insulation Resistance(min) | 1000M ohm Min. at 500V DC |
| Contact Plated | Tin over Gold |
| Dielectric Strength | 500V for one minute |
| Insulator material | PBT+30%G.F, (UL94V-0) |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
D-SUB usage characteristics
Although the D-SUB connector is a relatively simple component, it can use a wide range of fields and areas. Moreover, around us can also be seen everywhere D-SUB mixed with large current connectors. As a bridge connecting our normal lives, it also brings great convenience to our lives.
Product Application
1. There are a wide range of past and present uses for D-sub connectors. These include printer cables, computer game joysticks and external floppy disk drives. They are also used in some multi-channel audio recording systems.
2. It most common use of the D-sub connector is as a video connector. This is in a plug and socket known as DE15, meaning it is D-shaped, size E in ITT Cannon's system, and has 15 pins. These are arranged in three rows of five.
Please feel free to contact us and we will send you the drawings you need.
Packaging Details
Box/Tape & Reel/ Tray/ Tube/ PE Bag.
special Packing depend on customer.
Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method.
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.
Why choose RealRun?
1. RealRun has more than 15 years experiences in the electronic connectors area.
2. The goods with good quality and service are sold to more than 70 countries.
3. More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.
4. One of the biggest electronic connectors supplier in the China mainland.
