| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | HDR-nP 26P Male |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Brand Name: | RealRun | Place Of Origin: | GuangDong, China |
|---|---|---|---|
| Number Of Pins: | 26Pin | Color: | Black/Blue/White |
| Shell: | Steel Material, Nickel Finished | Insulator Material: | PBT+30%Glass Fiber UL94V-0 |
| Gorunding Bracket: | Steel Material, Tin Finished | Riveted Insert: | Steel Material, Ni Finished |
| Contact Plating: | Tin Plating | Contact: | Brass |
| Contact Current Rating: | 1.0 Amps | Insulation Resistance: | 1000 MΩ Min |
| Dielectric Withstanding Voltage: | 500V AC Min | Operation Temperature: | -55℃ To +105℃ |
| Contact Resistance: | 20mΩ Max | ||
| High Light: | HDR 26 Pin D Type Connector,Tin Plating D Type Connector,3 Row VGA PCB Connector |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

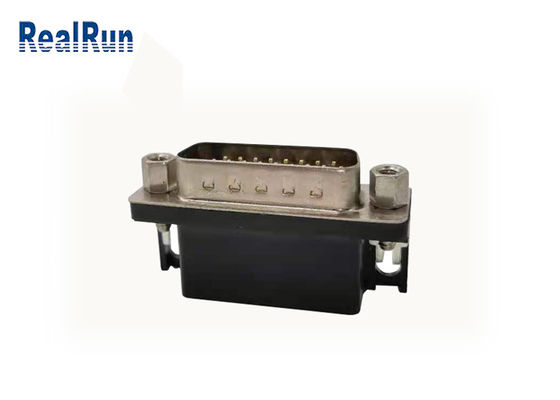

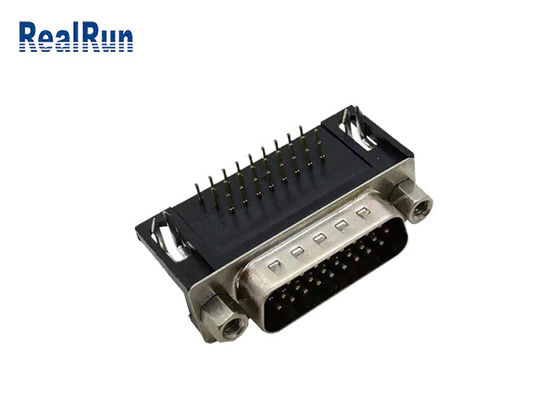

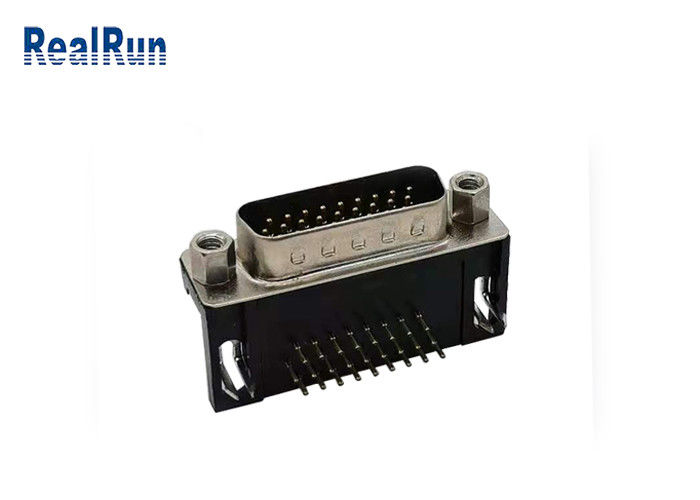

High Density D-Sub Conector HDR 26 Pin R/A 3 Row VGA Type PCB Connector
Product Features: Stable, durable, strong anti-interference ability;
Product material: High temperature resistant glass fiber plastic, metal wrapped interface, anti-interference, brass pin conduction and transmission signal more stable;
Product Application:1. There are a wide range of past and present uses for D-sub connectors. These include printer cables, computer game joysticks and external floppy disk drives. They are also used in some multi-channel audio recording systems.
2. It most common use of the D-sub connector is as a video connector. This is in a plug and socket known as DE15, meaning it is D-shaped, size E in ITT Cannon's system, and has 15 pins. These are arranged in three rows of five.
| Name | D SUB Connector |
| Gender | Male |
| Type | Solder type |
| Shell | SPCC, Nickel Plated |
| Insulator Color | Black |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 5 Amp |
| Contact | Brass |
| Operation Temperature | -55℃ to +105℃ |
| Insulation Resistance(min) | 1000M ohm Min. at 500V DC |
| Contact Resistance | 30mΩ Max |
| Contact Plated | Tin over Gold |
| Dielectric Strength | 500V for one minute |
| Insulator material | PBT+30%G.F, (UL94V-0) |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
Please feel free to contact us and we will send you the drawings you need.
How to order?
1,please tell us what product and quantity you need；
2.we will give you a quotation
3,then we will make a PI for you to confirm the order details ;
4,when we confirmed everything, can arrange the payment;
5,finally we deliver the goods within the stipulated time;
FAQ
Q: When can i get a reply?
A: We will reply to your inquiry within 12 hours.
Q: Are you trading company or factory?
A: We are a factory with 15 years of electronic connector manufacturing experience.
Q: Are there any samples available?
A: Yes, we can provide some samples for free.
Q: Has the product been check before delivery?
A: Yes! We will have a full quality inspection before delivery.
Q: What is the packing of the product?
A: Packaging: bag, roll bag, bulk, tube, CAP/Mylar + reel tape packing;
How to contact us?
Online contact with us, you can send us the product drawing and specifications of you need, then we will send ours drawing to you, we wii quote you after you confirm the product and quantity.
