Right Angle 1000VAC PBT Insulator D Sub Connector VGA DR 9 Pin

Product Description:

Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

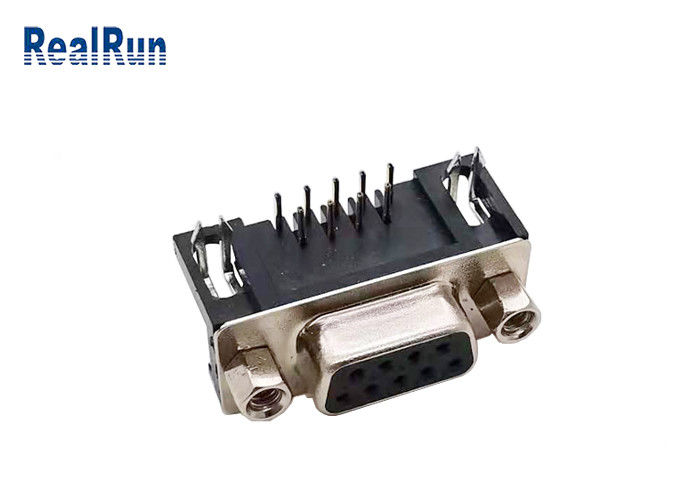

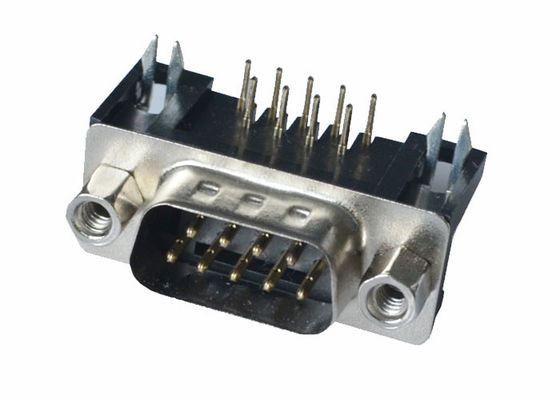

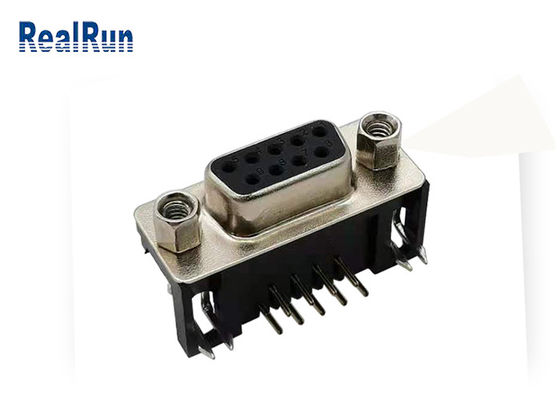

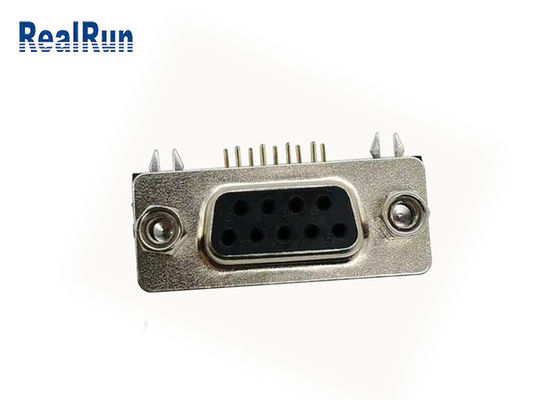

Gold Plated D-sub Connector Right Angle Type Socket VGA DR 9 Connector

Product Features: Stable, durable, strong anti-interference ability;

Product Material: High temperature resistant glass fiber plastic, metal wrapped interface, anti-interference, brass pin conduction and transmission signal more stable;

Product Application: As an industry standard connector, D-sub connector is widely used in many C series modules of Ni. To a large extent, the difference between D-sub accessories is just the number of pins in the connector. New economical connectors have been added to the D-sub series. This new series is for added applications that require less plug-in time, such as set-top boxes, control devices and meters. FCI economical D-sub series connector is suitable for STB, control equipment, watt hour meter and other plug-in applications with less cycle; And the requirement of this kind of application is higher and higher. D-sub connector is one of the earliest solutions and the most widely used I / O connector system

Please feel free to contact us and we will send you the drawings you need.

Precautions for welding:

(1) It is suggested to wrap a layer of heat insulation adhesive tape on the inner mold before wrapping copper foil to prevent the core wire from being scalded when welding copper foil or injection molding the outer mold;

(2) The coated copper foil is not allowed to have slit or damage;

(3) If it is found that the copper foil is damaged, the damaged part can be covered with copper foil, and then the joint between the repaired copper foil and the original copper foil shall be completely welded with solder;

(4) After the copper foil is completely wrapped, no inner mold or core wire is allowed to be exposed from any angle;

(5) Pay attention not to scald the core wire during welding.

(6) It is not allowed for the solder to dissolve into the gap between the internal mold and the connector and the solder to penetrate into the insulation tape of the internal mold.

How to contact us?

Online contact with us, you can send us the product drawing and specifications of you need, then we will send ours drawing to you, we wii quote you after you confirm the product and quantity.
