Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | HDP-nP 15P Male |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Brand Name: | RealRun | Place Of Origin: | GuangDong, China |
|---|---|---|---|
| Number Of Pins: | 15Pin | Color: | Black/Blue/White |
| Shell: | Stee Material, Tin Finish | Insulator Material: | PBT+30%Glass Fiber, UL94V-0 |
| Contact Finish: | Selective Gold Finished | Contact: | Brass |
| Contact Rating: | 5 Amps | Insulation Resistance: | 1000 MΩ Min |
| Dielectric Withstanding Voltage: | 500V AC Min | Operation Temperature: | -55℃ To +105℃ |
| Contact Resistanding: | 30MΩ Max | ||
| High Light: | HDP 15 Pin D SUB Connector,PBT Male Header D SUB Connector,Solder 15 Pin D Sub Male Connector |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

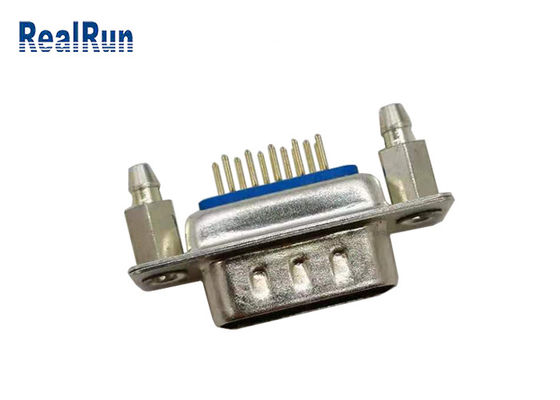

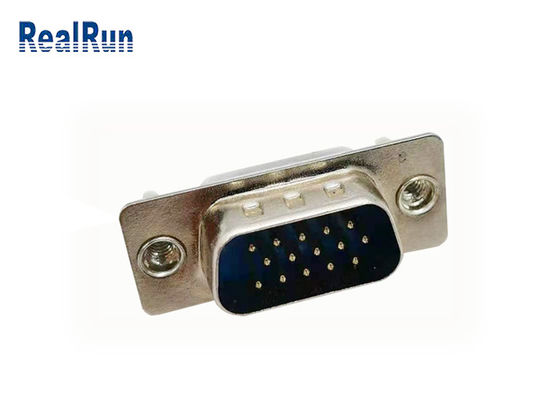

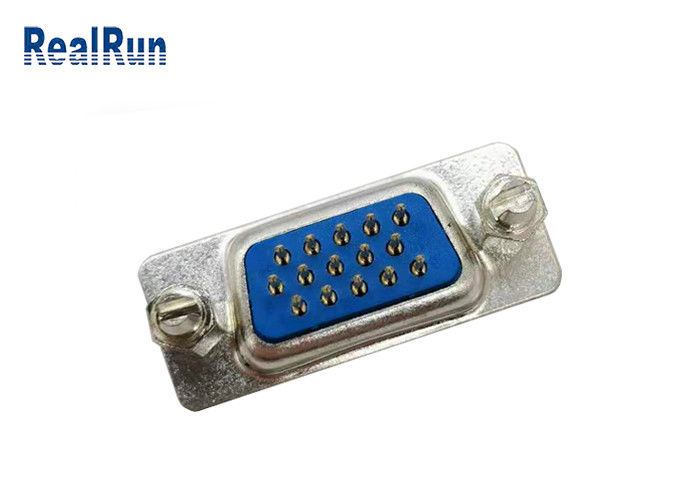

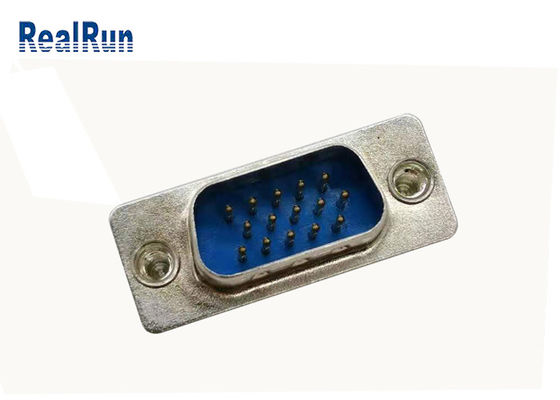

Blue D-sub HDP-15Pin Gold Plated Male Header With Lock Post UL94V-0
Product Description : As an industry standard connector, D-sub connector is widely used in many C series modules of Ni. To a large extent, the difference between D-sub accessories is just the number of pins in the connector. New economical connectors have been added to the D-sub series. This new series is for added applications that require less plug-in time, such as set-top boxes, control devices and meters. FCI economical D-sub series connector is suitable for STB, control equipment, watt hour meter and other plug-in applications with less cycle; And the requirement of this kind of application is higher and higher. D-sub connector is one of the earliest solutions and the most widely used I / O connector system
| Name | D SUB Connector |
| Gender | Male |
| Type | Solder type |
| Shell | Steel Material, Tin Finish |
| Contact Finish | Selective Gold Finished |
| Insulator Color | Blue |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 5 Amp |
| Contact | Brass |
| Operation Temperature | -55℃ to +105℃ |
| Insulation Resistance(min) | 1000M ohm Min |
| Contact Resistance | 30MΩ Max |
| Dielectric Withstanding Voltage | 500V AC minute |
| Insulator material | PBT+30%G.F, (UL94V-0) |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
Please feel free to contact us and we will send you the drawings you need.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: Which payment can be accepted?
A: 1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Q: Are you manufacture of trading company?
A: We are a manufacture in Shenzhen, China.
Q: What’s the delivery time?
A: It usually takes about 3~7 working days to produce the products.
