Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | HDR-nP 15P Female |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Brand Name: | RealRun | Place Of Origin: | GuangDong, China |
|---|---|---|---|
| Circuits: | 15Pin | Color: | Black/Blue/White |
| Shell: | Steel, Nickel Finished | Insulator Material: | PBT+30%GlassFiber, (UL94V-0) |
| Contact Plating: | Tin Plating | Contact: | Brass |
| Current Rating: | 1.0 Amps | Insulation Resistance: | 1000 MΩ Min |
| Dielectric Withstanding Vlotage: | 500VAC Min | Operation Temperature: | -55℃ To +105℃ |
| Contact Resistance: | 20mΩ Max | ||
| High Light: | HDR Machined Pin Connector,500VAC Machined Pin Connector,Female Header Right Angle Connector |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

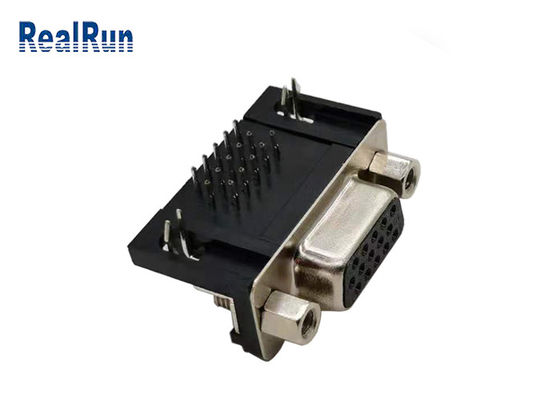

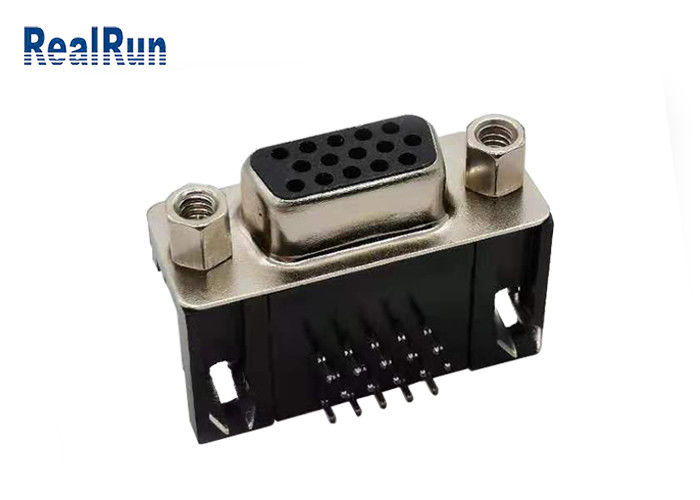

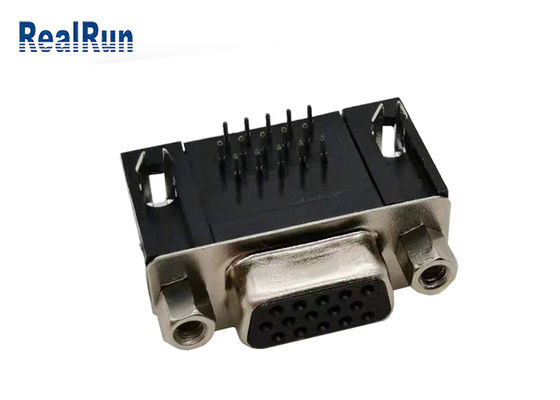

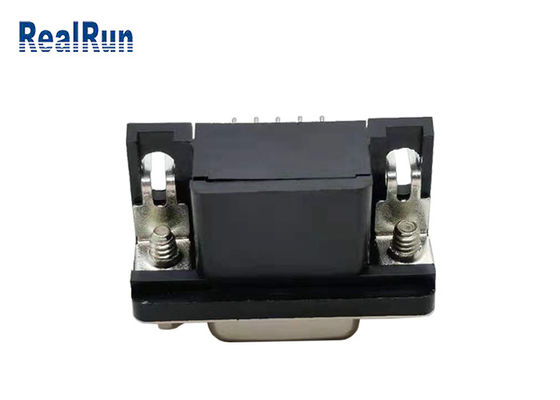

D-sub 15 Pin Female Header HDR Series Solid Brass Machined Pin Connector
| Name | D SUB Connector |
| Male/Female | Female type |
| Type | Right Angle type |
| Shell | Steel Material, Nickel Finished |
| Insulator Color | Black |
| Insulator Flammability | UL94V-0 |
| Current Rating | 1.0 Amp |
| Grounding Bracket | Steel Material, Tin Finished |
| Riveted Insert | Steel Material, Ni Finished |
| Contact | Brass |
| Contact resistance | 20m Ω Max |
| Operation Temperature | -55℃ to +105℃ |
| Insulation Resistance(min) | 1000M ohm Min |
| Contact Plating | Tin Plating |
| Dielectric Withstanding Voltage | 500V AC MIN |
| Insulator material | PBT+30%G.F, (UL94V-0) |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
Description:
1. D-SUB is short for D-subminiature. The D-SUB connector uses a series of pins that slot into a socket, with the plug usually screwed into place to prevent it coming loose.
2. D-SUB can be divided into two rows, three rows of welding line series, male head series, with rivets, with a high degree of close reactivity and a variety of fixed ground accessories, is a universal D-SUB., so that socket and plug protection cover combined.
3. It is very good at shielding EMI. High-current D-SUB can complete high-density and high-current series and can be mixed with the signal at the same time. The maximum current is 50A. The coaxial D-SUB allows mixed contact in mixed use, including signals, Gaodianya and Fiber, this new type of connector, are improved by combining military products.
Product Application
1. There are a wide range of past and present uses for D-sub connectors. These include printer cables, computer game joysticks and external floppy disk drives. They are also used in some multi-channel audio recording systems.
2. It most common use of the D-sub connector is as a video connector. This is in a plug and socket known as DE15, meaning it is D-shaped, size E in ITT Cannon's system, and has 15 pins. These are arranged in three rows of five.
Please feel free to contact us and we will send you the drawings you need.
FAQ
Q: When will the inquiry be answered?
A: it's usually within 12 hours.
Q: Didn't find the product you wanted?
A: never mind. You can find similar products, send us the details of the drawings or pictures, we can accept customize for you.
Q: Are you a trader or a factory?
A:we are factory, 15 years of electronic connector manufacturing experience and history.
Q: Do you accept small orders?
A: Yes, please contact us to make a small order for you.
Our advantages
1. 15 years experience in the electronic connector.
2. Strong R＆Team. specialized in connector and modle design.
3. Quality Certification. Certified ROHS and REACH,SGS,ISO9001.
4. Strict Shipping. 100% tested before delivery.
5. Fast Delivery. Orders shipped in 3-10 days.
6. OEM/ODM. OEM/ODM service offered.
