| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | DP-nP 9P Male |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Brand Name: | RealRun | Place Of Origin: | GuangDong, China |
|---|---|---|---|
| Circuits: | 9Pin | Color: | Black/Blue/White |
| Shell: | Steel, Nickel Finished | Insulator Material: | PBT+30%GlassFiber, (UL94V-0) Color, Black |
| Contact Plating: | Selective Gold Flashed | Contact: | Brass |
| Current Rating: | 1.0 Amp | Insulation Resistance: | 1000 MΩ Min |
| Dielectric Withstanding: | 500V AC Min | Operation Temperature: | -55℃ To +105℃ |
| Contact Resistance: | 20 Million Max | ||
| High Light: | ISO9001 D Sub Connector,D Sub Connector PBT,Vga Right Angle Connector |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

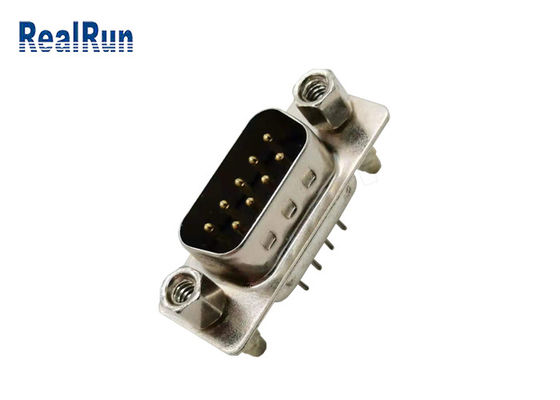

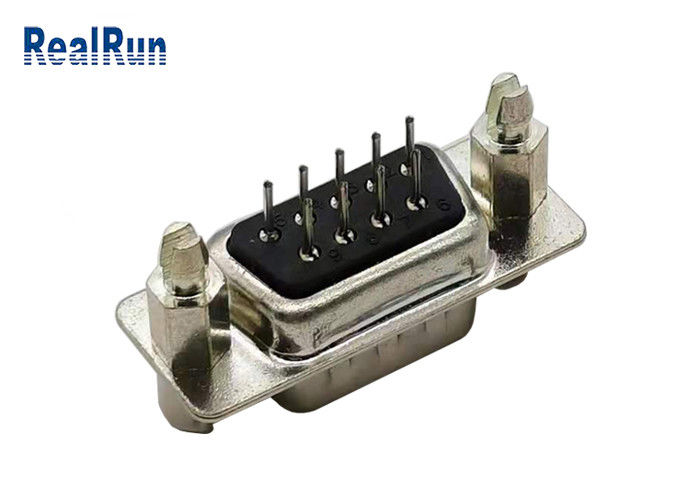

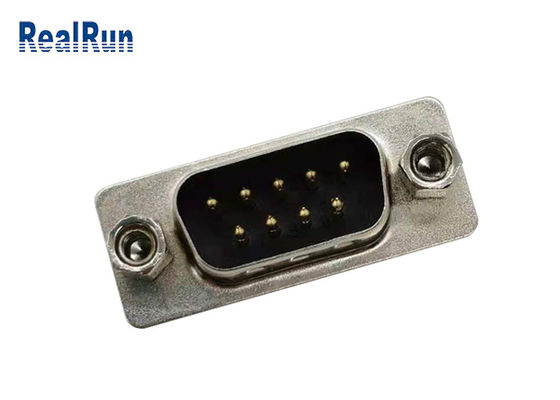

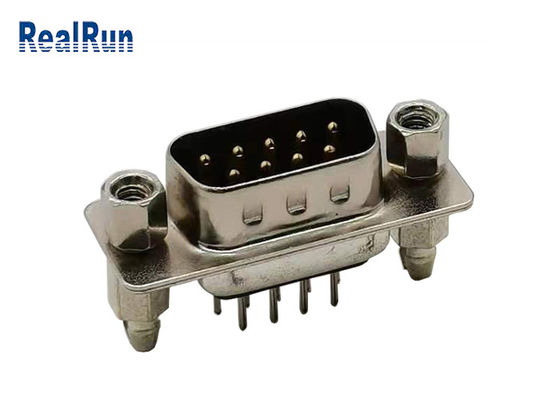

1.0 Amp D-sub Connector DP 9 Pin D Type 180 Degree Vga Connector
| Name | D SUB Connector |
| Male/Female | Male |
| Type | DIP type |
| Shell | Steel Material, Nickel Finished |
| Insulator Color | Black |
| Insulator Flammability | UL94V-0 |
| Current Rating | 1.0 Amp |
| Grounding Bracket | Brass Material, Tin Finished |
| Riveted Insert | Brass Material, Ni Finished |
| Contact | Brass |
| Contact resistance | 20 Million Max |
| Operation Temperature | -55℃ to +105℃ |
| Insulation Resistance(min) | 1000M ohm Min |
| Contact Plating | Selective Gold Flashed |
| Dielectric Withstanding | 500V AC MIN |
| Insulator material | PBT+30%G.F, (UL94V-0) |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
Description:
1. D-SUB is short for D-subminiature. The D-SUB connector uses a series of pins that slot into a socket, with the plug usually screwed into place to prevent it coming loose.
2. D-SUB can be divided into two rows, three rows of welding line series, male head series, with rivets, with a high degree of close reactivity and a variety of fixed ground accessories, is a universal D-SUB., so that socket and plug protection cover combined.
3. It is very good at shielding EMI. High-current D-SUB can complete high-density and high-current series and can be mixed with the signal at the same time. The maximum current is 50A. The coaxial D-SUB allows mixed contact in mixed use, including signals, Gaodianya and Fiber, this new type of connector, are improved by combining military products.
Please feel free to contact us and we will send you the drawings you need.
Why choose RealRun?
1. RealRun has more than 15 years experiences in the electronic connectors area.
2. The goods with good quality and service are sold to more than 70 countries.
3. More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.
4. One of the earliest manufacturers and Developers of electronic connector in Chinese mainland.
Our advantages
1. 15 years experience in the electronic connector.
2. Strong R＆Team. specialized in connector and modle design.
3. Quality Certification. Certified ROHS and REACH,SGS,ISO9001.
4. Strict Shipping. 100% tested before delivery.
5. Fast Delivery. Orders shipped in 3-10 days.
6. OEM/ODM. OEM/ODM service offered.
