Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | DP-nP 15P Male |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Brand Name: | RealRun | Place Of Origin: | GuangDong, China |
|---|---|---|---|
| Circuits: | 15Pin | Color: | Black/Blue/White |
| Shell: | Steel, Nickel Finished | Insulator Material: | PBT+30%GlassFiber, (UL94V-0) Color, Black |
| Contact Plating: | Selective Gold Flashed | Contact: | Brass |
| Current Rating: | 1.0 Amp | Insulation Resistance: | 1000 MΩ Min |
| Dielectric Withstanding: | 500V AC Min | Operation Temperature: | -55℃ To +105℃ |
| Contact Resistance: | 20 Million Max | ||
| High Light: | 11.8 Harpoon Micro D Connector,Back Riveting Micro D Connector,SGS D Sub Male Connector |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

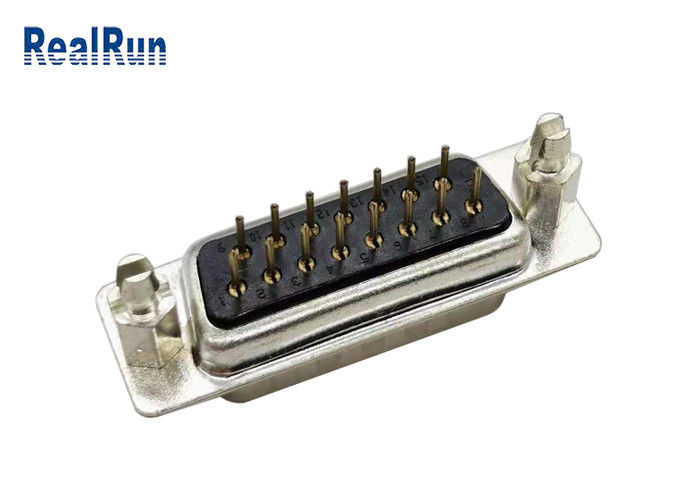

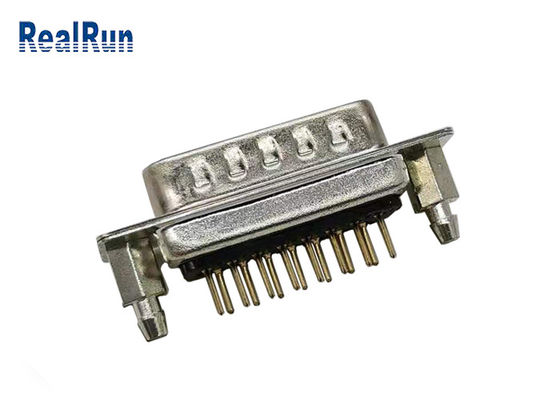

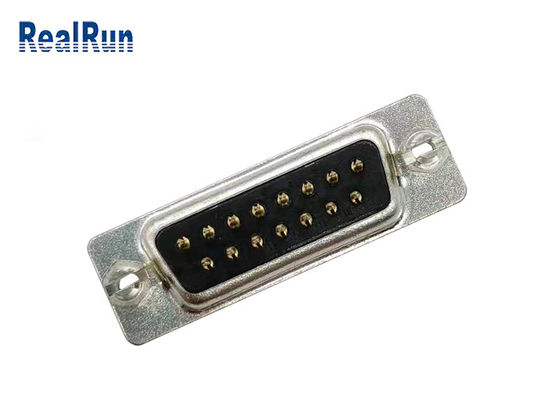

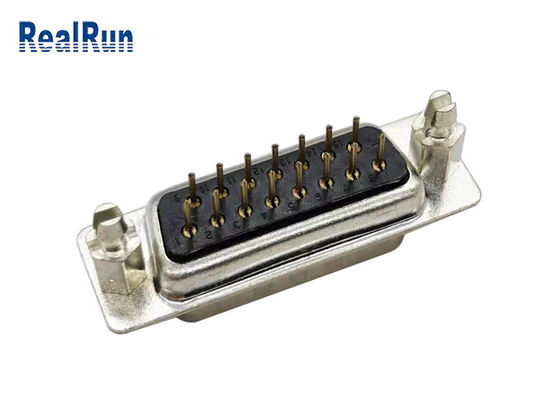

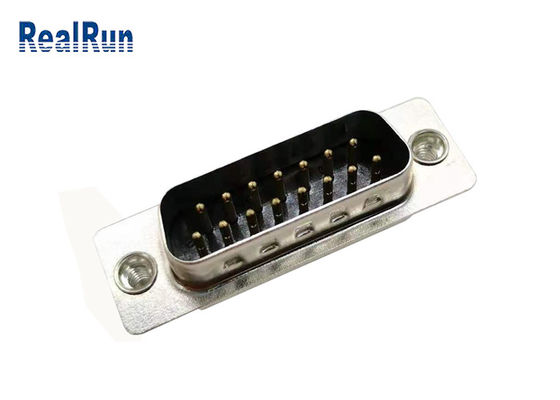

DP 15 D-sub Male Full Gold 180° Plugboard Back riveting 11.8 Harpoon
1. D-SUB is short for D-subminiature. The D-SUB connector uses a series of pins that slot into a socket, with the plug usually screwed into place to prevent it coming loose.
2. D-SUB can be divided into two rows, three rows of welding line series, male head series, with rivets, with a high degree of close reactivity and a variety of fixed ground accessories, is a universal D-SUB., so that socket and plug protection cover combined.
3. It is very good at shielding EMI. High-current D-SUB can complete high-density and high-current series and can be mixed with the signal at the same time. The maximum current is 50A. The coaxial D-SUB allows mixed contact in mixed use, including signals, Gaodianya and Fiber, this new type of connector, are improved by combining military products.
| Name | D SUB Connector |
| Male/Female | Male |
| Type | DIP type |
| Shell | Steel Material, Nickel Finished |
| Insulator Color | Black |
| Insulator Flammability | UL94V-0 |
| Current Rating | 5Amp |
| Contact | Brass |
| Operation Temperature | -55℃ to +105℃ |
| Insulation Resistance(min) | 1000M ohm Min,at 500V DC |
| Contact Plating | Selective Gold Flashed |
| Grounding Bracket | Brass Material, Tin Finished |
| Jack Screws | Brass Material, Nickel Finished |
| Dielectric Withstanding | 500V for One minute |
| Insulator material | PBT+30%G.F, (UL94V-0) |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
Please feel free to contact us and we will send you the drawings you need.
Service Composite
1. Lead customer choose a best connection sulotion way.
2. 20pcs free sample. Support more than 20pcs sample for old customer.
3. OEM/ODM service. We have a strong R&D team to support connector design.
4. Quickly response, email reply within 12hours,online inquiry is welcome.
5. Serivce attitude:our business is not just connector supply, it's about deliverying promises.
6. The series of product specifications are complete, but also tailor-made. Safe and reliable quality, competitive price.
Q: Which payment can be accepted:
1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
