UL94V-0 500VAC D Sub Connector DP 25 Pin VGA Dual Row DIP

Product Description:

Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

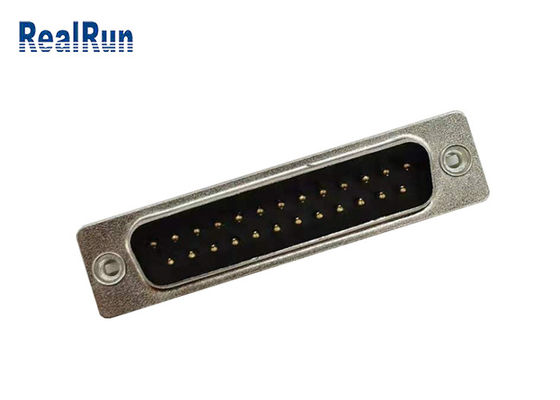

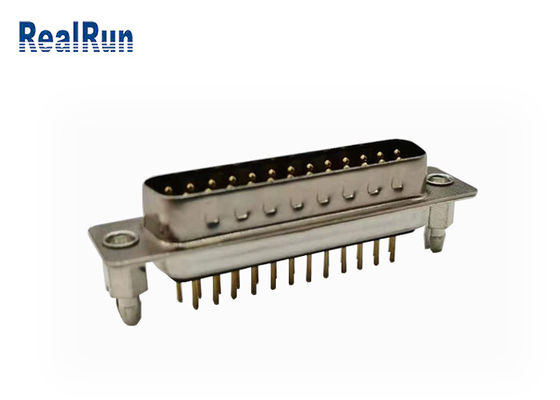

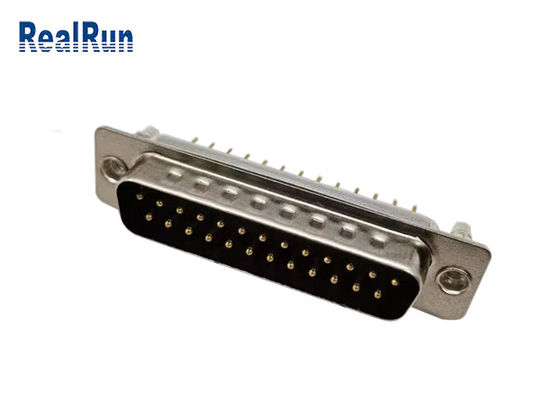

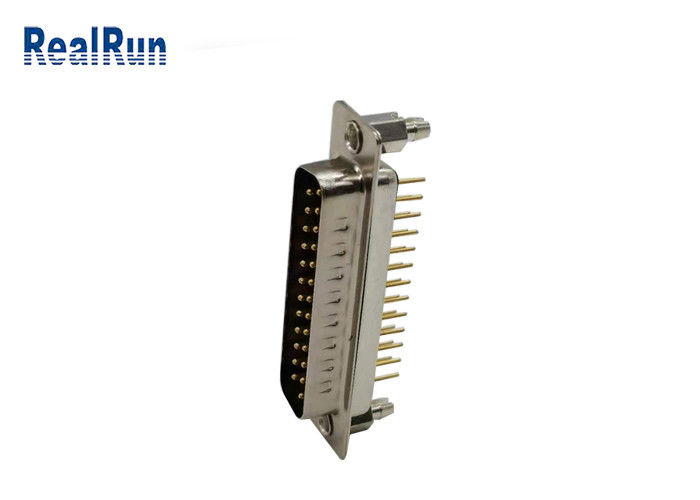

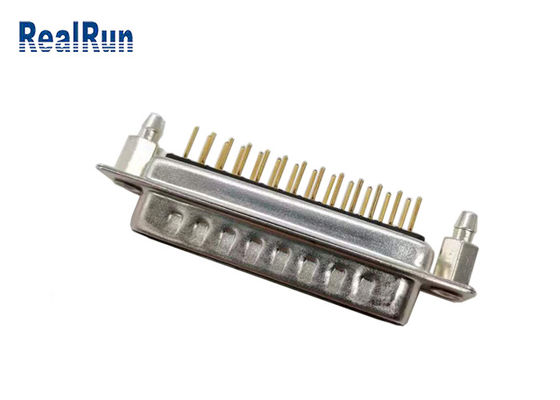

DIP Type D-sub Connector Dual Row DP 25 Pin Gold Plated Connector

Advantage: The D-sub connector is large and durable, so it is very suitable for use in severe environments with extremely important durability. They can also be compatible with many old-fashioned devices. Because of these advantages, D-sub is widely used in factories, manufacturing workshops and industrial environments. In addition to having a metal shield, some D-sub connectors have a screw on one side. In the tight state, these screws can provide safe connection, and ensure that the connector can keep matching and handover in any case.

Application:Most commonly used in computing, video and communications. This type of connector is also used in military, medical, industrial, data, instrument and consumer applications.

Please feel free to contact us and we will send you the drawings you need.

D-sub Connector

D-sub connector is named for its unique shape of D-type shield. The metal shield can protect two or more rows of pin pins or female heads of the connector, and ensure that the connector is matched and butted through the correct direction and alignment. It should be able to be inserted tightly into the shielding cover of another male. Sometimes the shield is also designed to prevent electromagnetic interference.

Precautions for welding:

(1) It is suggested to wrap a layer of heat insulation adhesive tape on the inner mold before wrapping copper foil to prevent the core wire from being scalded when welding copper foil or injection molding the outer mold;

(2) The coated copper foil is not allowed to have slit or damage;

(3) If it is found that the copper foil is damaged, the damaged part can be covered with copper foil, and then the joint between the repaired copper foil and the original copper foil shall be completely welded with solder;

(4) After the copper foil is completely wrapped, no inner mold or core wire is allowed to be exposed from any angle;

(5) Pay attention not to scald the core wire during welding.

(6) It is not allowed for the solder to dissolve into the gap between the internal mold and the connector and the solder to penetrate into the insulation tape of the internal mold.
