Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | R4.2-2*nP 20Pin |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Place Of Origin: | Guangdong, China | Brand Name: | RealRun |
|---|---|---|---|
| Application: | PCB Board | Insulator Material: | Nylon 66,UL94V-0 |
| Contact Material: | Brass, Tin-plated | Insulation Resistance: | 1000MΩ Min |
| Contact Resistance: | 20mΩ Max | Withstanding Voltage: | 1500V AC/minute |
| Current Rating: | 7A AC, DC | Voltage Rating: | -40℃~+105℃ |
| High Light: | PCB Header Wafer Connector,7A DIP Wafer Connector,Nylon 66 Wire To Board Connector |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

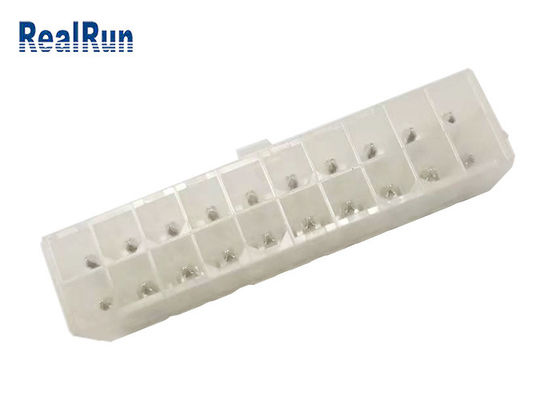

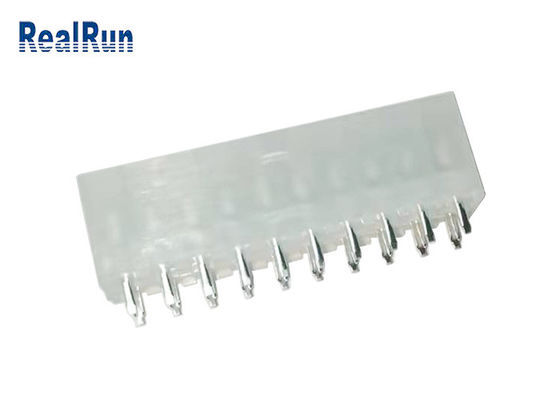

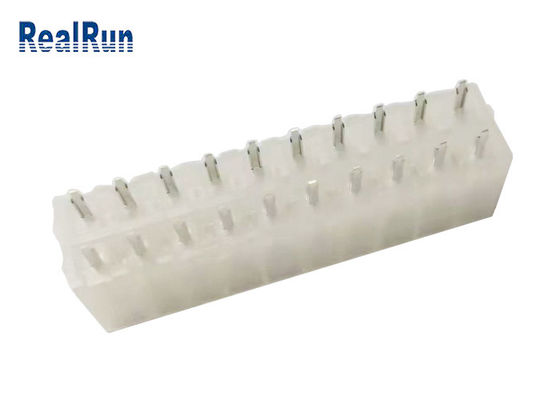

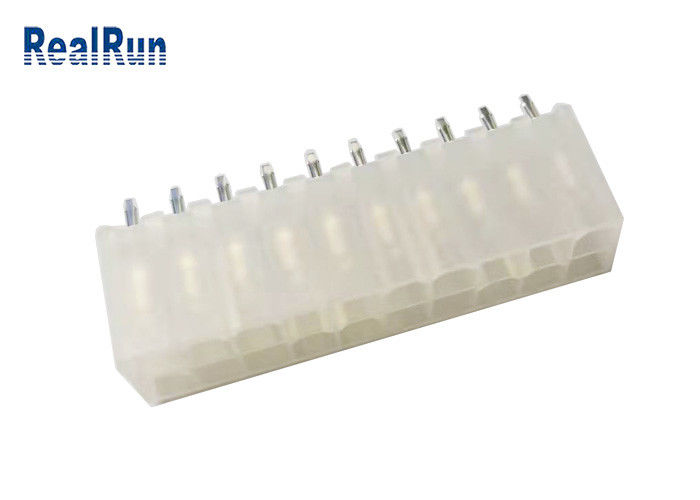

4.2Mm 5566 Series Wire To Board Straight 2*10 Pin Wafer Connector Housing PCB Header
| Name | Wafer Connector |
| Pitch | 2.54mm |
| Type | DIP type |
| Insulator Color | White |
| Insulator Flammability | Nylon 66, UL94V-0 |
| Current Rating | 7A,AC,DC |
| Contact Resistance(max) | 20m ohm Max |
| Insulation Resistance(min) | 1000M ohm Min |
| Contact Materials | Brass |
| Pins(Hollow Pin) | 20Pin(Customize) |
| Contact Plated | Tin Plated Over Nickel |
| Processing Temperature | 260℃ for 10 seconds |
| Packing | Tape+Reel Packing |
| OEM/ODM | Accepted |
Please feel free to contact us send you the drawing of you need:
Product Application
The main supporting fields of wafer connector are transportation, communication, network, it, medical treatment, home appliances, etc.
Payment:
We can accept T/T, L/C, Western Union, and Money Gram, you can choose the way you like.
Please make sure that you have completed all the detailed information like contact person, address, zip code, and telephone number when filling in your information.
Packing & Shipping
1. Housing: bag /SMT Wafer:tape and reel/terminal:tape and reel .Normally,we use the carton with good quality to put all goods in it in case any damage during the delivery.
2. The way of shipment : by sea, by air, or express such as DHL/TNT/UPS etc.
3. Delivery Time: normally 3~7wroking dasy. For urgent orders ,we can shorten the delivery time accordingly.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: Which payment can be accepted?
A: 1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Q: Are you manufacture of trading company?
A: We are a manufacture in Shenzhen, China.
Q: What’s the delivery time?
A: It usually takes about 3~7 working days to produce the products.
Q: If I don't have any drawings, can you still quote my product?
A: Yes, just provide as many details as possible about your product and quoting department can get started on your quote. As an added service, our qualified engineering staff can produce drawings.
Q: How can we get a quote?
A: Please offer the specification of the product, such as part No. , quantity, drawing, etc.
