| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | XH-4P PA46 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Insulator Flammability: | UL 94V-0 | Contact Resistance(max): | 30m Ohm |
|---|---|---|---|
| Application: | VCD, DVD, LCM/LED Display Module | Withstand Voltage: | 1000 V AC/DC |
| Insulation Resistance(min): | 1000M Ohm | Operating Temperature: | -40~105℃ |
| High Light: | DIP type wafer connector 2.54 mm,PA46 wafer connector 2.54 mm,Wire To Board 4 pin wafer connector |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

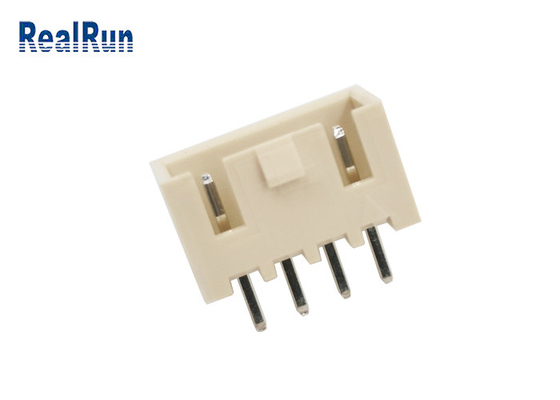

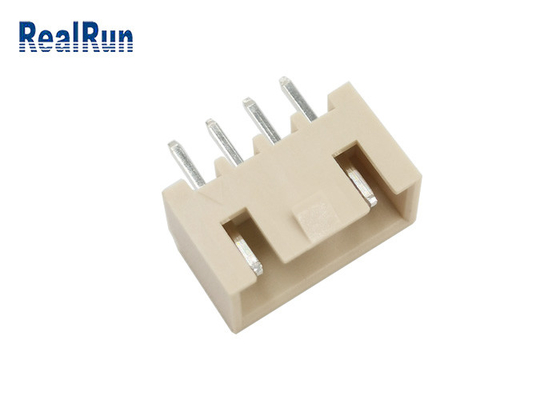

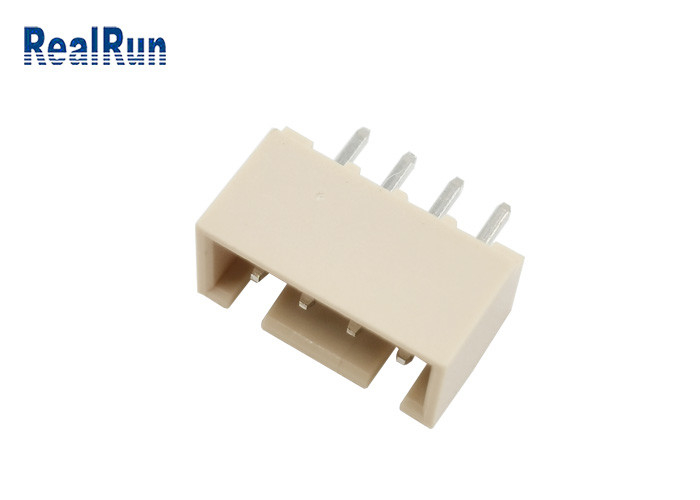

PA46 High Temperature Resistance XH 2.54Mm Wafer Connector 4P For Wire To Board
| Name | Wafer Connector |
| Pitch | 2.54mm |
| Type | DIP type |
| Insulator Color | Beige |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 3A |
| Contact Resistance(max) | 30m ohm Max |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact materials | Gold/Tin plating |
| Contact Plated | Tin or gold over nickel |
| Insulator material | PA46 |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
Product feature
1. The insulation resistance is the index to measure the insulation performance between the contacts of electrical connector and between the contacts and the shell, with the order of magnitude ranging from hundreds of megohm to gigaohm.
2. Electrical connector with high contact resistance shall have low and stable contact resistance. The contact resistance of the connector varies from a few milliohms to tens of milliohms.
3. Electrical strength, or voltage and dielectric withstand voltage, is the ability to withstand rated test voltage between connector contacts or between contacts and shell.
4. Other electrical performance.
Product Application
The main supporting fields of wafer connector are transportation, communication, network, it, medical treatment, home appliances, etc.
| Current Rating | 2.0 AMP |
| Contact Resistance | 30 mΩ Max |
| Withstand Voltage | 1000 V AC/DC |
| Insulation Resistance | 1000MΩ Min |
| Contact Material | Coppy Alloy |
| Products Name | XH Series Wafer Connector |
| Pitch | 2.54mm(0.10'') |
| Mounting Type | Right Angle Through Hole |
| Contact Plating | Tin Plating |
| Insulator Material | PA46 UL94V-0 |
Please feel free to contact us and we will send you the drawing of you need:
