Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | IDC2.54-nP-L 14P |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Gender: | Female | Pitch: | 2.54mm |
|---|---|---|---|
| Circuits: | 4~68P | Color: | Black/Grey |
| Contact Material: | PhosPhor | Contact Plating: | Gold/Tin Over Nickel |
| High Light: | idc ribbon cable assembly,ribbon cable assemblies |
||

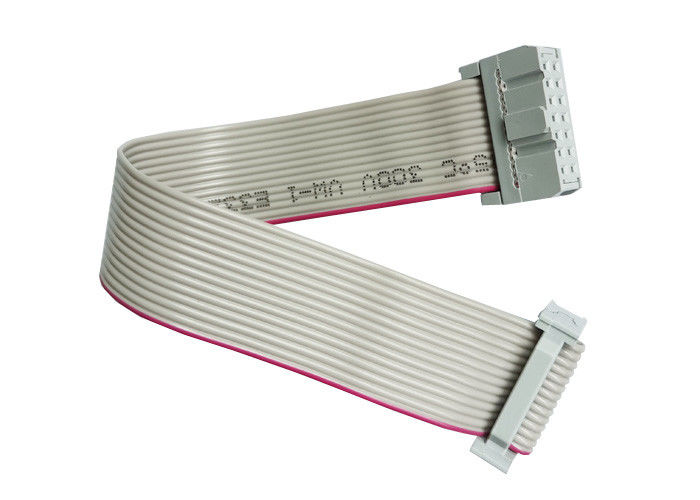

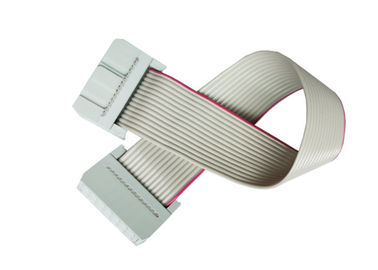

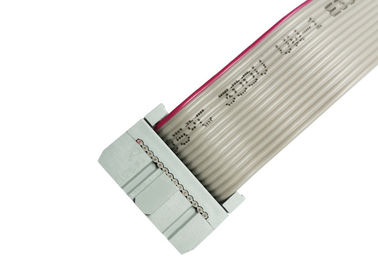

UL2651 Certificated 2.54 Mm Pitch Ribbon Cable With Selective Au Ni IDC Header
|
Name |
IDC Flat Cable |
|
Pitch |
2.54mm |
|
Type |
Flat Cable |
|
Insulator Color |
Black/Grey |
|
Insulator Flammability |
UL 94V-0 |
|
Current Rating |
3A |
|
Contact Resistance(max) |
4m ohm Max |
|
Operating Voltage |
60V AC/DC |
|
Insulation Resistance(min) |
1000M ohm Min at DC 500V |
|
Contact materials |
Gold/Tin plating |
|
Contact Plated |
Tin or gold over nickel |
|
Insulator material |
PA6T |
|
Processing Temperature |
-40~105℃ |
|
Packing |
Bag Packing |
|
OEM/ODM |
Accepted |
Description
1. IDC cable could be customized 1.0mm, 1.27mm, 2.54mm pitch all available.
2. They are often used for connections to PCBs and for links either within equipment or externally. IDC cables have the best ability both in compactness and manageability.
3. We could also provide all kinds of types, such as standard grey, color-coded (rainbow) Ribbon in laminated or edge boded form and specials such as twisted pair (twist-n-flat), round jacketed (round-n-flat) and screened ribbon cables.

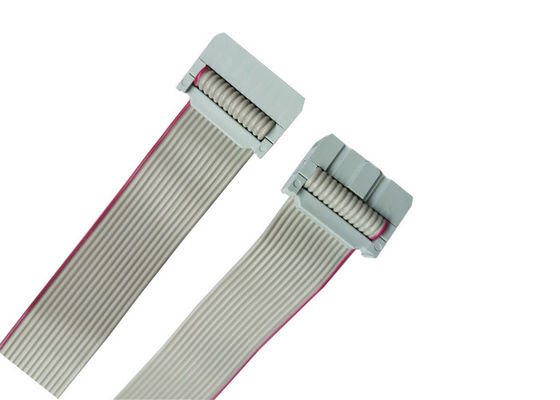

How to distinguish cable direction?
1. Same direction
Both bump at the same way.
2. Oppsite direction
Both bump at the oppsite way.
3. Up and dowm direction
Both bump at the different way. For the details,you can check as below image description.
FAQ:
Q: Can I get some samples?
A: Yes,some samples are free.
Q: Why we choose RealRun for our supplier?
A: RealRun has more than 10 years experiences in the electronic connectors area.
The goods with good quality and service are sold to more than 70 countries.
More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.
One of the biggest electronic connectors supplier in the China mainland.
Q: If happend with the defective products when receiving the goods, how to deal with?
A: Next to impossible of the goods will be not good as before the shipping, we have many chekings to confirm the products is no problem. Then if happened, RealRun will bear all the responsibility.
First: why this will be happen, how happen, and how to control in the future, a table will be come out for your checking.
Second: discuss the solutions.
Finally: RealRun will bear all the fees if returning and changing the goods or the loss caused.
Q: which payment can be accepted:
A: The payment terms can be flexiable depend on the quantity and products.
Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
