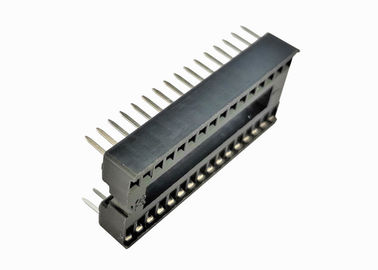

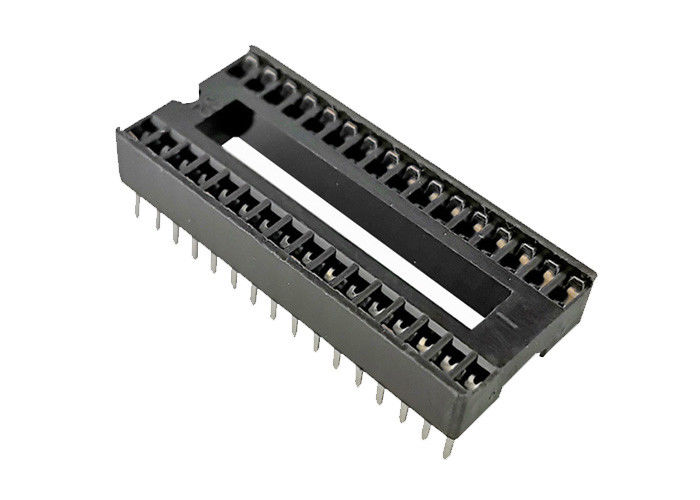

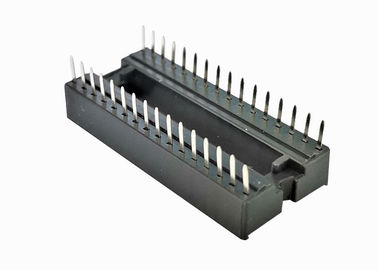

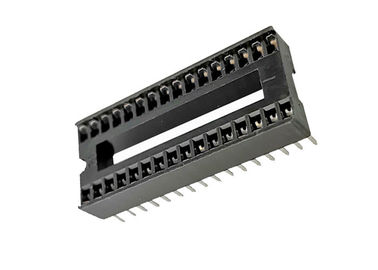

1.778mm Pitch IC Socket DIP Square Hole Pin Header Connector 3A Current Rating

1.778mm Pitch IC Socket DIP Square Hole Pin Header Connector 3A Current Rating

  • 1.778mm Pitch IC Socket DIP Square Hole Pin Header Connector 3A Current Rating
  • 1.778mm Pitch IC Socket DIP Square Hole Pin Header Connector 3A Current Rating
  • 1.778mm Pitch IC Socket DIP Square Hole Pin Header Connector 3A Current Rating
  • 1.778mm Pitch IC Socket DIP Square Hole Pin Header Connector 3A Current Rating
1.778mm Pitch IC Socket DIP Square Hole Pin Header Connector 3A Current Rating
Product Details:
Place of Origin: China
Brand Name: RealRun
Certification: ISO9001, SGS, Rohs, Reach
Model Number: IC1.778-nP 32P
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Tray Packing
Delivery Time: 3~7workdays
Payment Terms: L/C, T/T, Western Union, paypal
Supply Ability: 100000pcs/day
Contact Now
Detailed Product Description
Application: PCB Board Insulator Material: PBT/PA6T
Contact Material: Brass Contact Plating: Gold/Tin Over Nickel
Withstanding Voltage: 500V AC/minute Operation Temperature: -40~+105℃
Insulation Resistance: 1000MΩ Min Processing Temperature: 260±5℃ For 10 Seconds
High Light:

integrated circuit socket

,

ic chip socket

1.778mm Pitch IC Socket DIP Square Hole Pin Header Connector 3A Current Rating



Name

IC Socket

Pitch

1.778mm

Type

DIP type

Insulator Color

Black

Insulator Flammability

UL 94V-0

Current Rating

3A

Contact Resistance(max)

30m ohm Max

Operating Voltage

500V AC/DC

Insulation Resistance(min)

1000M ohm Min at DC 500V

Contact materials

Gold/Tin plating

Contact Plated

Tin or gold over nickel

Insulator material

PA6T

Processing Temperature

-40~105℃

Packing

Tray Packing

OEM/ODM

Accepted



Item name:1.778mm IC Connector

product features: the use of a wide range of environmental protection, explosion-proof, moisture-proof

product material: (UL94V-0) PPS black +30%GF

scope of application: used in all kinds of consumer electronic appliances, electronic communication, power and industrial control, medical equipment, automotive electronics, solar energy and other industries, with the most sophisticated and reliable connections for customers.



1.778mm Pitch IC Socket DIP Square Hole Pin Header Connector 3A Current Rating 0



Payment:

  • We can accept T/T, L/C, Western Union, and Money Gram, you can choose the way you like.

  • Please make sure that you have completed all the detailed information like contact person, address, zip code, and telephone number when filling in your information.



Delivery Time:

  • 3 -7 days after receiving your payment(according to your quantity).



Feedback:

  • Buyer’s early confirmation will be highly appreciated after receiving the goods.

  • Because your feedback is vital to our business’s development, we sincerely invite you to leave positive feedback for us, if you are satisfied with our products and services.



Main products: Pin header, Female header, Box header, Ejector header, IDC series, IC socket, single and double row round hole socket, FFC/FPC connector and SD socket, FFC cable, flat ribbon cable, RJ45 and RJ11, etc.



Sincerely welcome customers home and abroad to discuss cooperations! Sincerely thanks to our customers for more than 10 years of cooperation and guidance, we will be strict in management of the production of science and technology, good quality, as always, to serve you.
