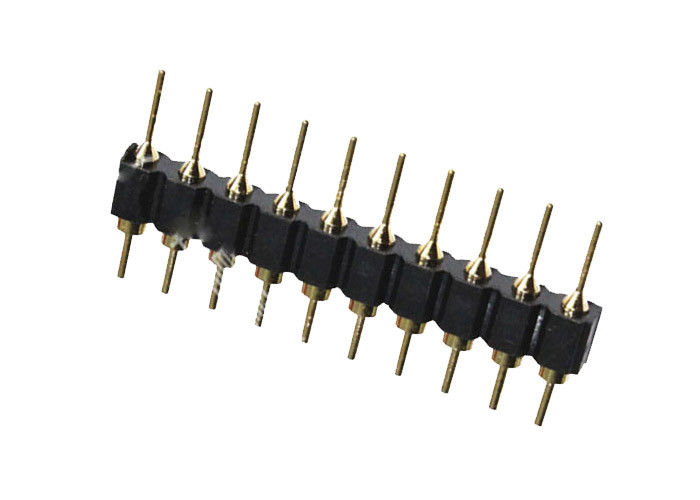

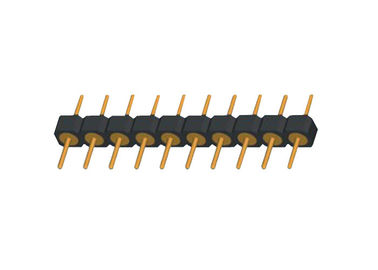

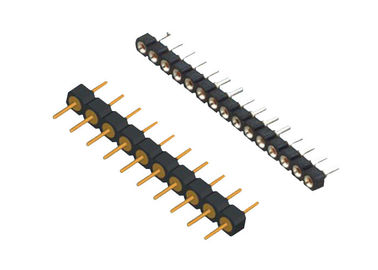

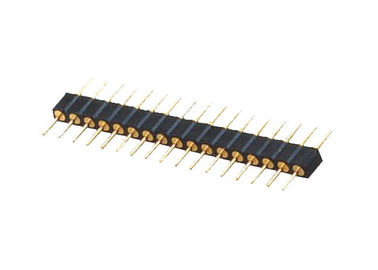

2.54mm Through Hole Pin Header Single Row 180 Degree DIP Type 10 Pin Connector

2.54mm Through Hole Pin Header Single Row 180 Degree DIP Type 10 Pin Connector

Description

1. Pin header is widely used in LED display, industrial control and power control, instruments and meters, security monitoring, automotive electronics, computers and peripheral equipment, medical devices, household appliances, power supply, various communication equipment, etc

2. Product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance.

3.Its function is to act as a bridge between the blocked or isolated circuits in the circuit, and to take on the task of current or signal transmission.

Category

1. According to the spacing: 0.8, 1.0, 1.27, 2.0, 2.54, 3.96, 5.08mm;

2. According to the number of rows, it is divided into single row, double row, three row and four row. At present, there are only four rows at most;

3.According to the height and quantity of plastic (such as single plastic, double plastic, three plastic, etc.).

4. According to the installation mode of layout, it is mainly divided into 180 degrees, 90 degrees, SMT(vertical mount SMT, horizontal SMT and right angle SMT);

5. According to whether it needs to be increased and whether it needs to be divided with positioning columns, there are two kinds of positioning columns: one is the internal positioning column, the other is the ear positioning column;

6. Number of stitches: 02 to 80; 02 to 100;

7. Packaging: bag, roll bag, bulk, tube, CAP/Mylar + reel tape packing;

FAQ

Q: Can I get some samples?

A: Yes,some samples are free.

Q: What’s the delivery time?

A: It usually takes about 5~8 workdays to produce the products.

Q: If I don't have any drawings, can you still quote my product?
A: Yes, just provide as many details as possible about your product and quoting department can get started on your quote. As an added service, our qualified engineering staff can produce drawings.

Q: Is OEM & ODM available?

A: OEM&ODM are welcome.

Why choose RealRun?

1. Passed ISO9001, ISO14001, ROHS, CE, UL,Reach certification

2. All products are shipped through ROHS test, coating test, salt spray test

3. Introduce a complete set of excellent and advanced production equipment from abroad, fully automatic production, high efficiency and high output

4. In terms of price, our unit price is only 1 / 5 of the imported connector

5. Independent product R & D, product design and mold design common products 15 days sample delivery
