| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | RPH1.27-1xnP 17P |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 1.27mm | Pin: | 17P |
|---|---|---|---|
| Insulator Color: | Black | Plastic Hight: | 2.5mm |
| Current Rating: | 7A | Insulation Resistance(min): | 1000M Ohm |
| High Light: | round female pin header,male and female headers |
||

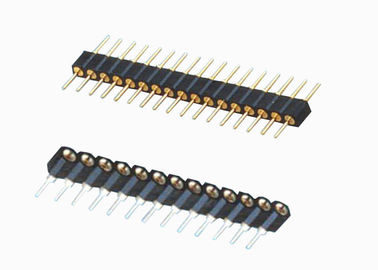

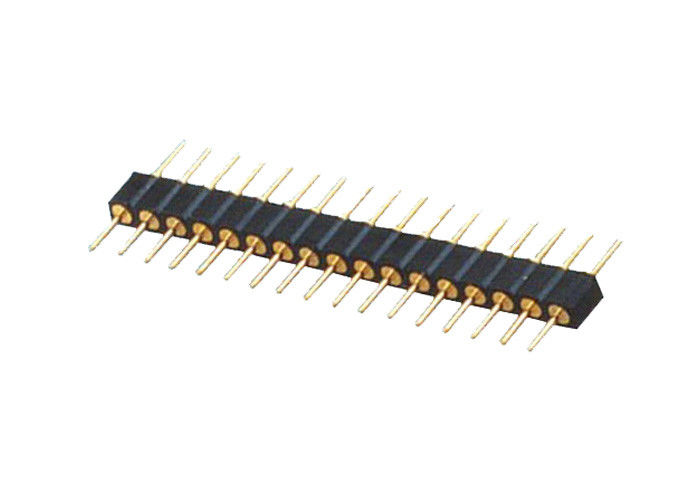

17 Pin Single Row Female Header 180 Degree Type Environmental Protection
| Product Name: pin connector | ||||||||
| features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance. | ||||||||
| product material: its material is brass wire, phosphorus copper wire, copper clad steel wire, pure copper wire, the surface of nickel plating, nickel plating. | ||||||||
| Application scope: it is widely used in displays, digital camera, MP3, MP4, PDA, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc. As the most reliable connection plate to plate, wire to board provides. |
|
Pitch: 5.08mm |
|||||
| Plastic Hight: 2.5mm | |||||
| Rated Current:7.0AMP | |||||
| Contact Resistance: 30mΩ Max | |||||
| Withstand Voltage:500V AC/DC | |||||
| Insulation Resistance:1000MΩ Min | |||||
| Operation Temperature: -40°c to +105°c | |||||
| Contact Material :brass | |||||
| Contact Plating: Tin or gold over nickel | |||||
| Insulator Material :Polyester (UL94V-0) | |||||
|
Termination: Solder |
|||||
|
Processing Temperature: 260±5℃ for 10 seconds |
Category
1. According to the spacing: 0.8, 1.0, 1.27, 2.0, 2.54, 3.96, 5.08mm;
2. According to the height and quantity of plastic (such as single plastic, double plastic, three plastic, etc.).
3. According to the number of rows, it is divided into single row, double row, three row and four row. At present, there are only four rows at most;
4. According to the installation mode of layout, it is mainly divided into 180 degrees, 90 degrees, SMT(vertical mount SMT, horizontal SMT and right angle SMT);
5. Number of stitches: 02 to 80; 02 to 100;
6. Material:
6-1: Terminal part: brass, or phosphor bronze;
6-2: Insulator part: PBT, PA46, PA6T, PA66, PA9T, LCP plastic UL94V-0 (UL94 is the standard, V-0 is the fire rating);
7. Surface treatment: gold plating 1u/3u/5u/10u and even more, thick gold, tin plating, nickel plating (1u=1uinch=1/39.37μm).
FAQ
Q1. What ‘s PCB Connector can provide?
Pin Header, Female Header, Box Header, Ejector header, IDC, DIP,Machine(Round) Pin, DIN 41612,MiNi Jumper,Wafer,
Micro Match, SIM Card, SATA, D_SUB,USB,IEEE1394,IC-Sockets, FFC/FPC, PLCC, SCSI, POGO PIN, IDC TO IDC Flat cable and Micro match Flat Cable.
Q2. What’s samples quantity you can get with free?
You can get 20pcs free samples.
Q3. What’s the production delivery date?
3~7 workdays.
