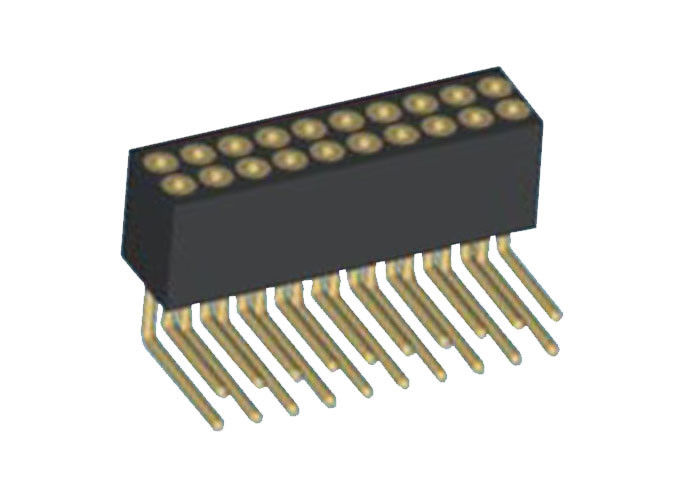

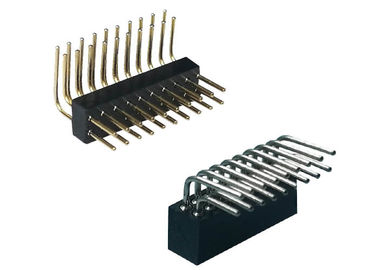

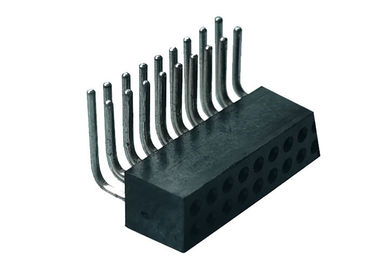

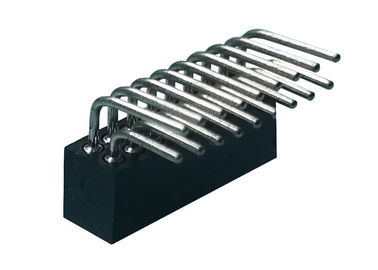

1.27mm Double Row Female Header Right Angle PCB Board Connector 20 Pin

1.27mm Double Row Female Header Right Angle PCB Board Connector 16 Pin

Item name: female connector

1. product features: Female header connector is a kind of connector.

2. product material: PA9T/PBT/ brass or phosphor bronze insulation material: plastic UL 94V-0.

3. scope of application: widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection.




Category
1. According to the spacing: 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm.
2. According to whether it has convex points, the convex points are divided into half convex and full convex.
3. According to the number of rows: single row, double row, three row, four row, etc. at present, there are only four rows at most.
4. According to the installation mode, 180 degrees are represented by s, 90 degrees by W, and SMT by T.
5. According to whether it needs to be increased or not, whether it needs to be divided with positioning columns, there are two kinds of positioning columns, one is the internal positioning column and the other is the ear positioning column.
6. According to the terminal division: Y-type terminal (generally used for plastic height), U-type terminal (generally used for plastic height), four side ring bonding terminal;

FAQ

Q: Can I get some samples?

A: Yes,some samples are free.

Q. which payment can be accepted:

A: 1. The payment terms can be flexiable depend on the quantity and products.

2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.

Q: Can I get some samples?

A: Yes, sample order is available for quality check and market test.

Q: What’s the delivery time?

A: It usually takes about 3~7 working days to produce the products.
