| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | FD2.54-nP 10P |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Processing Temperature: | 260±5℃ For 10 Seconds | Insulator Flammability: | UL 94V-0 |
|---|---|---|---|
| Type: | IDC Connector | Application:: | FPC |
| Operating Voltage: | 60V AC/DC | Insulator Material: | PA6T/PA9T/LCP |
| High Light: | idc socket connector,idc wire to board connector |
||

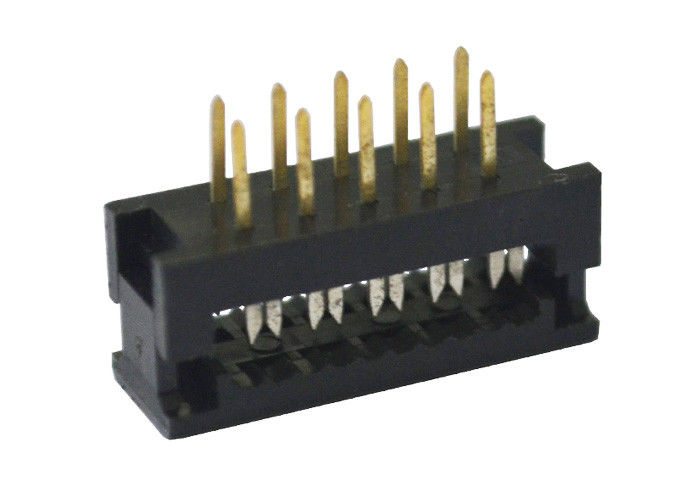

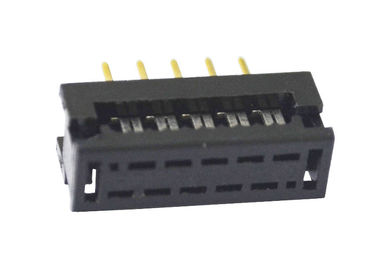

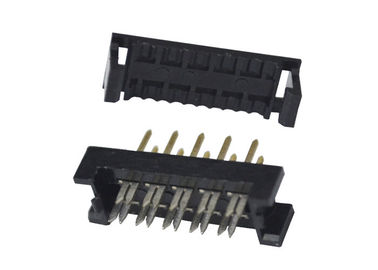

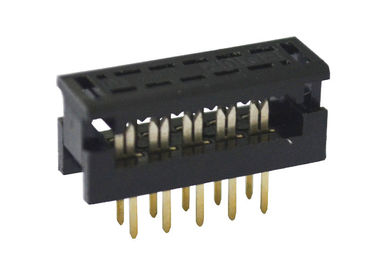

Male Header 10 Pin Idc Female Connector Gold / Tin Plating Contact Materials
| Name | IDC Connector |
| Pitch | 2.54mm |
| Type | Press Cable Type |
| Insulator Color | Black/Grey |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 3A |
| Contact Resistance(max) | 4m ohm Max |
| Operating Voltage | 60V AC/DC |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact materials | Gold/Tin plating |
| Contact Plated | Tin or gold over nickel |
| Insulator material | PA6T |
| Processing Temperature | -40~105℃ |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
Description
IDC Connector called insulation-displacement contact is an electrical connector designed to be connected to the conductor(s) of an insulated cable by a connection process which forces a selectively sharpened blade or blades through the insulation, bypassing the need to strip the conductors of insulation before connecting. When properly made, the connector blade cold-welds to the conductor, making a theoretically reliable gas-tight connection.
Product Application
IDC Connector is widely used in cable PCB board VGA/SVGA card or BIOS chip, the discrete wire assembly is directly connected to the PCB, introducing the power and signal to the PCB, and the daisy chain board creates the continuous string board together.
Shipping:
1. We can shipping all over the world by DHL, UPS, FEdex, TNT and EMS. The packaging is very safe and strong. Please nitfy me you have any special needs
2. It will take around 3-7 days to reach your hands.
Product Type & condition:
Because of the fluctuant sales situation. the stock parts are always changing and the stock list cannot be promptly updated. So please consult the stock situation when you inquire.
Warranty & Guarantee:
All components we sell the quality with 30 days Return policy from the day of shipment.
FAQ:
Q: Can I get some samples?
A: Yes,some samples are free.
Q: Why we choose RealRun for our supplier?
A: RealRun has more than 10 years experiences in the electronic connectors area.
The goods with good quality and service are sold to more than 70 countries.
More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.
One of the biggest electronic connectors supplier in the China mainland.
