Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | IDC1.27-nT 4T |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Withstanding Voltage: | 500AC | Insulator Flammability: | UL 94V-0 |
|---|---|---|---|
| Type: | IDC Connector | Operating Voltage: | 60V AC/DC |
| Contact Resistance(max): | 30m Ohm | Processing Temperature: | 260±5℃ For 10 Seconds |
| High Light: | idc socket connector,insulation displacement connector |
||

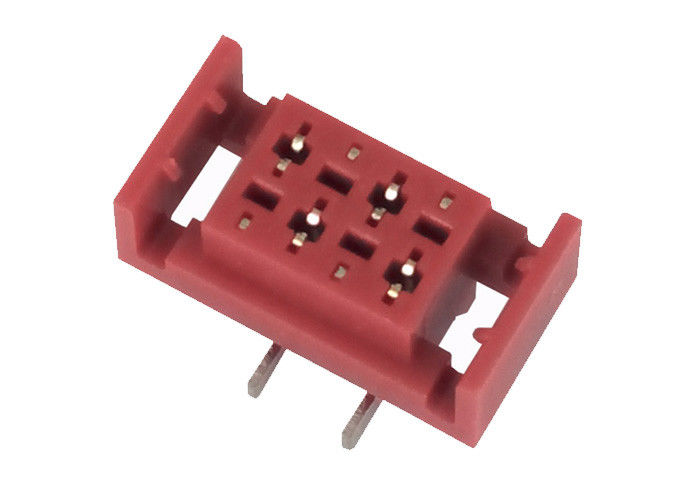

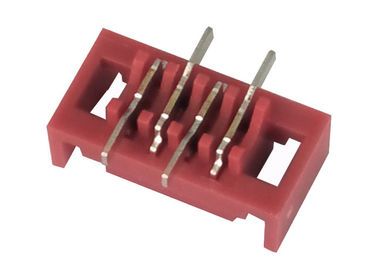

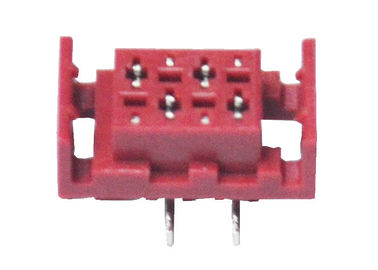

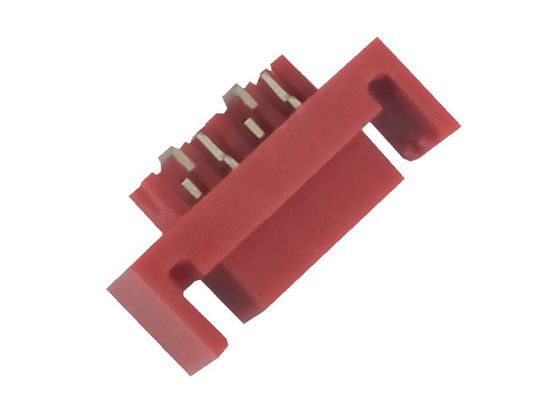

1.27 Mm Idc Connector Red Female Header 4 Pin 500AC Withstanding Voltage
Description
IDC Connector called insulation-displacement contact is an electrical connector designed to be connected to the conductor(s) of an insulated cable by a connection process which forces a selectively sharpened blade or blades through the insulation, bypassing the need to strip the conductors of insulation before connecting. When properly made, the connector blade cold-welds to the conductor, making a theoretically reliable gas-tight connection.
Product Application
IDC Connector is widely used in cable PCB board VGA/SVGA card or BIOS chip, the discrete wire assembly is directly connected to the PCB, introducing the power and signal to the PCB, and the daisy chain board creates the continuous string board together.
| Name | IDC Connector |
| Pitch | 1.27mm |
| Type | Press Cable Type |
| Insulator Color | Red |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 3A |
| Contact Resistance(max) | 4m ohm Max |
| Operating Voltage | 60V AC/DC |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact materials | Gold/Tin plating |
| Contact Plated | Tin or gold over nickel |
| Insulator material | PA6T |
| Processing Temperature | -40~105℃ |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
Shipping:
1. We can shipping all over the world by DHL, UPS, FEdex, TNT and EMS. The packaging is very safe and strong. Please nitfy me you have any special needs
2. It will take around 3-7 days to reach your hands.
Product Type & condition:
Because of the fluctuant sales situation. the stock parts are always changing and the stock list cannot be promptly updated. So please consult the stock situation when you inquire.
Warranty & Guarantee:
All components we sell the quality with 30 days Return policy from the day of shipment.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory and trading company.
Q: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. or 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge, Freight cost should be collected.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
