Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | IDC2.54-nP 4P |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Withstanding Voltage: | 500AC | Insulation Resistance(min): | 1000M Ohm |
|---|---|---|---|
| Type: | IDC Connector | Application:: | FPC |
| Contact Resistance(max): | 30m Ohm | OEM/ODM: | Accepted |
| High Light: | idc wire to board connector,insulation displacement connector |
||

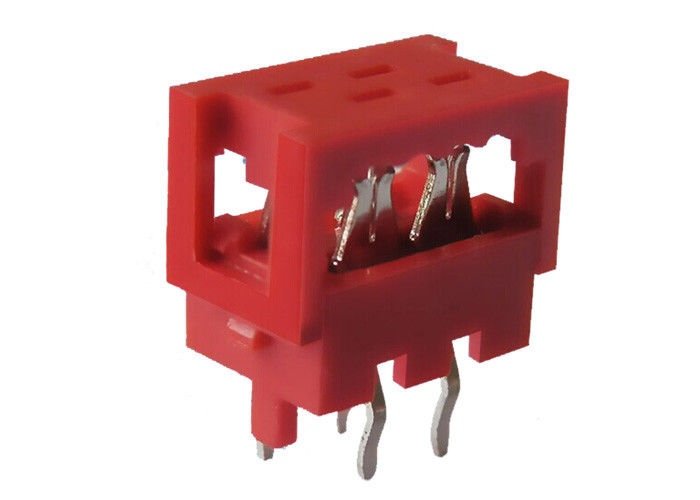

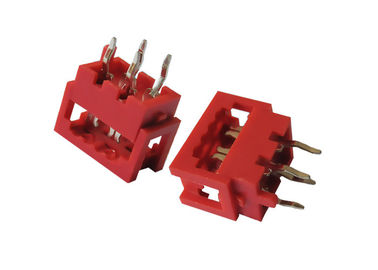

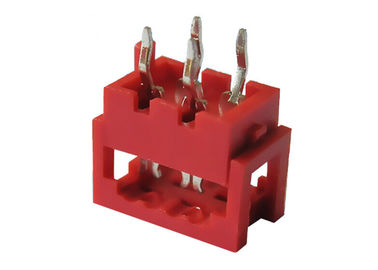

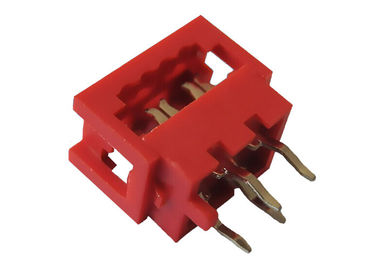

1.27 Mm Pitch IDC Connector 4 Pin Male Header Wire To Board IDC Socket
|
Current Rating |
3.0AMP |
|
Contact Resistance |
20mΩ Max |
|
Withstand Voltage |
1000V AC/DC |
|
Insulation Resistance |
1000mΩ Min |
|
Operation Temperature |
﹣40℃ to +105℃ |
|
Contact Material |
phosphor Bronze |
|
Contact Plating |
Au over Ni |
|
Insulator Material |
PBT+30%GF UL94V-0 |
|
Product Name: IDC connector |
||
|
1. Product features: contact system has been used to the level of automation test impact, vibration, and temperature cycling also proved their reliability and ruggedness. High temperature insulator up to 260 degrees Celsius reflow soldering process |
||
|
2. Insulating material: nylon 46:UL94V0 contact materials: phosphor bronzeTin plating: nickel PBT |
||
|
3. Scope of application: to be blocked in the circuit between the circuit or isolated bridge of communication, so that the current flow of the circuit, and achieve the intended function. 1 Introduction to PCB power supply and signal 2 discrete wire assembly is connected directly to the PCB |
Shipping:
1. We can shipping all over the world by DHL, UPS, FEdex, TNT and EMS. The packaging is very safe and strong. Please nitfy me you have any special needs
2. It will take around 3-5 days to reach your hands.
Product Type & condition:
Because of the fluctuant sales situation. the stock parts are always changing and the stock list cannot be promptly updated. So please consult the stock situation when you inquire.
Warranty & Guarantee:
All components we sell the quality with 30 days Return policy from the day of shipment.
FAQ
1. Are you a Facotry?
Yes, We are the one of largest connector manufacturer local in Shenzhen,China.We warmly welcome you visit our facotry.
2. How to get a free sample to check the quality?
We ususlly offer within 20pcs samples, but freight should be coolected.
3. When can I get a quotation of cable assembly?
There are two differents way to get a quote, one is online inquiry, one is email us.We'll detail with your inquirys within 12hours.
4. What about the lead time for mass production?
It depend on order quantity. Generally speaking, We'll finish your order within 2weeks. Urgent part will delivery in one week.
