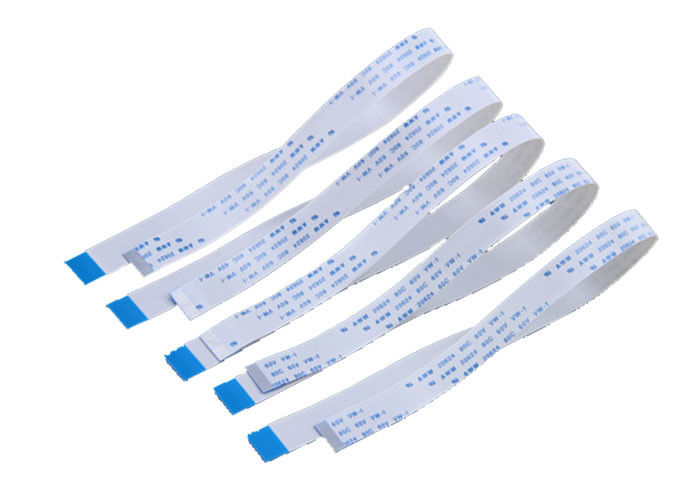

1.0mm Pitch FPC Ribbon Cable Various Flexibility 20 Pin Flexible Flat Cable

1.0mm Pitch FPC Ribbon Cable Various Flexibility 20 Pin Flexible Flat Cable

Product overview:
Based on the vast FFC market in China, FFC alignment, also known as Flexile Flap Cable(FFC) Chinese translation: Flexible flat cable, can freely select the number and spacing of wires, making the connection more convenient, greatly reducing the volume of electronic products, reduce production costs, To improve production efficiency, it is most suitable for data transmission cables between mobile components and motherboards, between PCB boards and PCB boards, and in miniaturized electrical equipment. Common specifications include 0.5 mm, 0.8 mm, 1.0 mm, 1.25 mm, 1.27 mm, 1.5 mm, 2.0 mm, 2.54 mm and other spacing flexible cables.

Product Application
FFC Cable widely used in the connection between printing head and main board of various printers, signal transmission and board connection of plotter, scanner, copier, audio, liquid crystal appliance, fax machine, various DVD player and other products. In modern electrical equipment, almost nowhere.

FFC alignment technical parameters:

1. Number of conductors N: The number of copper conductors in the cable;

2. Spacing P: distance between two adjacent conductor centers;

3. Edge M: The distance between the center line of the outermost conductor and the edge of the row line;

4. Full spacing TP: distance between the outermost two conductor centers, TP = P *(N-1);

5. Total width W: distance between the two edges of the row, W = P *(N +1).

Packaging Details
Most product not have MOQ,the common connectors are in stock.Small order can be accepted.
Box/Tape & Reel/ Tray/ Tube/ PE Bag.
special Packing depend on customer.

Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method.
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.
