Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | 0.5-50P-400mm |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Color: | White/black | Side Contact: | A Or B |
|---|---|---|---|
| Length: | 20 To 10000mm(customized) | No.of Pins: | 2-50pin(customized) |
| Conductor: | Tin-plated, Gold-plated, Multi-shield Parts | Supporting Tape Material: | PET |
| Highlight: | flex ribbon cable,flexible ribbon cable |
||

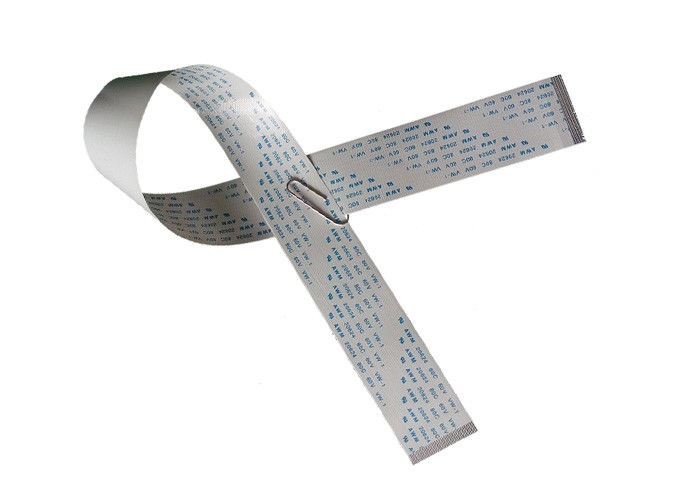

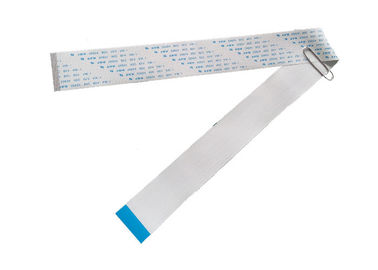

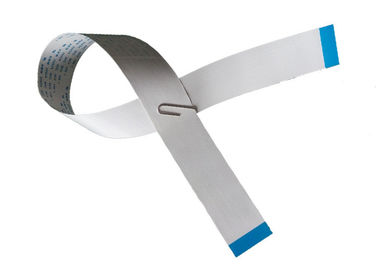

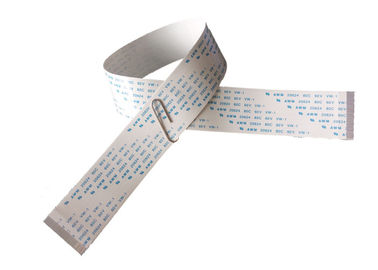

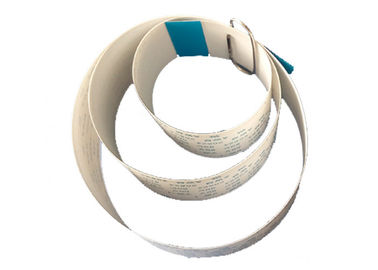

400mm FPC Ribbon Cable 50 Pin A 3.5 Type PET Supporting Tape Material
Product overview
Based on the vast FFC market in China, FFC alignment, also known as Flexile Flap Cable(FFC) Chinese translation: Flexible flat cable, can freely select the number and spacing of wires, making the connection more convenient, greatly reducing the volume of electronic products, reduce production costs, To improve production efficiency, it is most suitable for data transmission cables between mobile components and motherboards, between PCB boards and PCB boards, and in miniaturized electrical equipment. Common specifications include 0.5 mm, 0.8 mm, 1.0 mm, 1.25 mm, 1.27 mm, 1.5 mm, 2.0 mm, 2.54 mm and other spacing flexible cables.
| Product Model | FFC Ribbon Cable Atype |
| Spacing | 0.5mm |
| PIN Bit | 50Pin |
| Current Rating | 0.5AMP |
| Withstand Voltage | 500V AC/DC |
| Insulation Resistance | 1000MΩ Min |
| Operation Temperature | -20℃ to +85℃ |
| Insulator Material | TPE UL94-V |
| Contact Plating | Tin Plated |
FFC alignment technical parameters
1. Number of conductors N: The number of copper conductors in the cable.
2. Spacing P: distance between two adjacent conductor centers.
3. Edge M: The distance between the center line of the outermost conductor and the edge of the row line.
4. Full spacing TP: distance between the outermost two conductor centers, TP = P *(N-1).
5. Total width W: distance between the two edges of the row, W = P *(N +1).
Where it needs to be used
FFC cable is a flexible flat cable Flexable Flat Cable(FFC) is a thin tin plated flat copper wire with PET insulation and soft, arbitrary folding, thin thickness, small size, simple connection, easy to remove, easy to solve electromagnetic shielding(EMI) Other advantages. The scope of application can refer to the following combination diagram.
Packaging Details
Most product not have MOQ,the common connectors are in stock.Small order can be accepted.
Box/Tape & Reel/ Tray/ Tube/ PE Bag.
special Packing depend on customer.
Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method.
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.
Why choose RealRun?
1. Professional R & D, production, sales as one of the industrial companies.
2. With advanced production equipment and testing equipment abroad, with advanced product design, development and manufacturing capabilities.
3. Through ISO9001, ISO14001, ROHS, CE, reach, UL certification.
4. Main board to board, board to line, line to line, I / O, IC base, storage connector.
