Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | 1.0-18P-150mm |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Withstanding Voltage: | 500AC | Pitch: | 0.5/0.8/1.0/1.25/2.54 |
|---|---|---|---|
| Length: | 20 To 10000mm(customized) | No.of Pins: | 2-50pin(customized) |
| Conductor: | Tin-plated, Gold-plated, Multi-shield Parts | Supporting Tape Material: | PET |
| High Light: | flexible flat wire,flex ribbon cable |
||

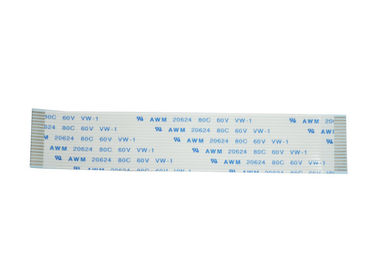

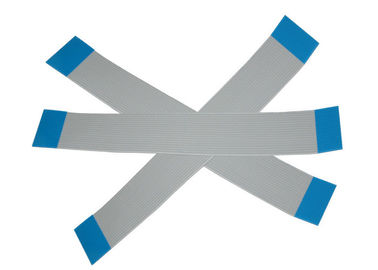

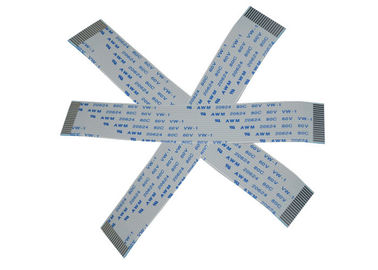

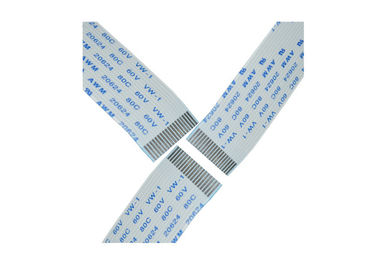

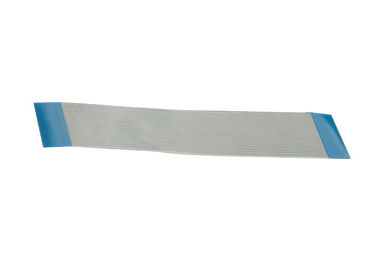

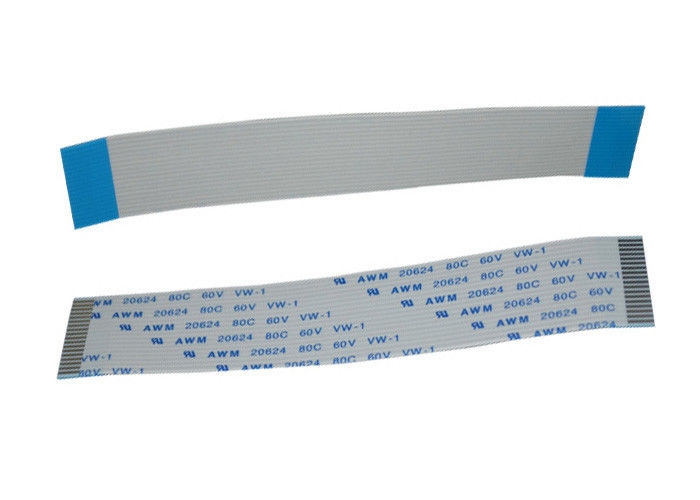

Customized 18 Pin FPC Flat Cable 1.0mm A Type Tin Plated Contact Material
|
Number of Conductor |
18 Pins |
|
Pitch |
1.0mm±0.10 |
|
Width |
17mm±0.15 |
|
Total Pitch |
15mm±0.10 |
|
Margin |
1.0mm±0.15 |
|
Total Length |
XXmm±3mm |
|
Terminal Thickness |
0.30±0.05 |
|
Insertion Thickness |
0.121 ±0.02 |
|
Conductor Strip Length |
4.0±1.0mm |
|
Supporting Tape Length |
8.0±2.0mm |
|
Conductor Thickness |
0.035±0.005 |
|
Conductor Width |
0.65±0.03 |
|
Slanting |
＜0.50 |
|
Supporting Tape Color |
Blue |
|
Supporting Tape Spec |
0.225mm |
|
Insulation Film Spec |
43um |
What's the Flexible Flat Cable(FFC)
Flexible flat cable is new type connection data cable, which made by PET insulation and thinner copper conductor.
They widely used in consumer electronics and more and more choose by every industry customer.
Generally, There are 0.5mm/1.0mm/1.25mm/2.0mm/2.54mm and so on.
FFC alignment technical parameters
1. Number of conductors N: The number of copper conductors in the cable;
2. Spacing P: distance between two adjacent conductor centers;
3. Edge M: The distance between the center line of the outermost conductor and the edge of the row line;
4. Full spacing TP: distance between the outermost two conductor centers, TP = P *(N-1);
5. Total width W: distance between the two edges of the row, W = P *(N +1).
Packaging Details
Most product not have MOQ,the common connectors are in stock.Small order can be accepted.
Box/Tape & Reel/ Tray/ Tube/ PE Bag.
special Packing depend on customer.
Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method.
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: Which payment can be accepted?
A: 1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Q: What’s the delivery time?
A: It usually takes about 3~7 working days to produce the products.
