Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | IC2.54-nP 18P |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Application: | PCB Board | Contact Material: | Brass |
|---|---|---|---|
| Withstanding Voltage: | 500V AC/minute | Operation Temperature: | -40~+105℃ |
| Insulation Resistance: | 1000MΩ Min | Processing Temperature: | 260±5℃ For 10 Seconds |
| High Light: | integrated circuit socket,ic chip socket |
||

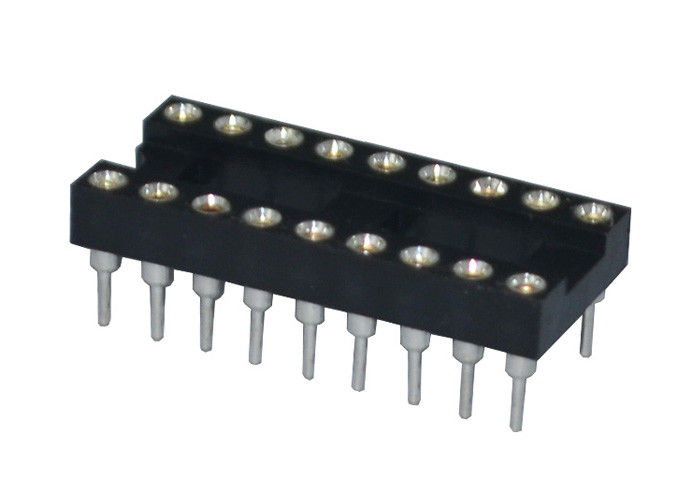

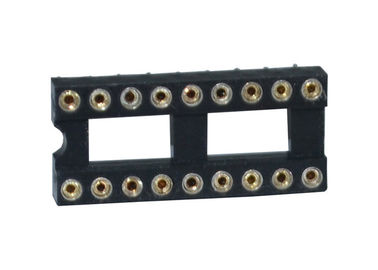

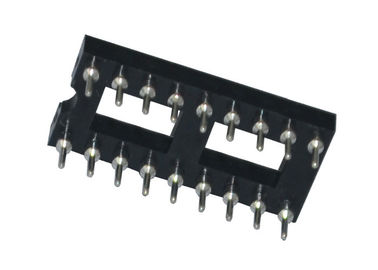

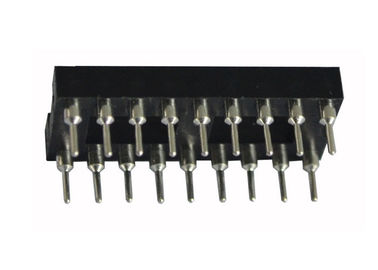

Round Hole 2.54mm IC Socket 18P Straight Pin Header Connector 180 Degree
|
Forces |
polished steel gauga Φ0.43mm |
|
Insertion |
200g Max/Pin, Withdrawal:60g Min/Pin |
|
Operation Temperature |
﹣40℃ to +105℃ |
|
Sleeve |
Brass CuZn36Pb3(C36000),Sn over Ni |
|
Contact Clip(4 finger) |
BeCu(C17200),Au Or Sn over Ni |
|
Insulator Material |
PPS+30%GF(UL94V-0) |
|
06~18P |
Insulatora without center bar |
|
20~28P |
Insulatora with center bar |
|
Item name:2.54mm IC Socket |
||
|
product features: the use of a wide range of environmental protection, explosion-proof, moisture-proof |
||
|
product material: (UL94V-0) PPS black +30%GF |
||
|
scope of application: used in all kinds of consumer electronic appliances, electronic communication, power and industrial control, medical equipment, automotive electronics, solar energy and other industries, with the most sophisticated and reliable connections for customers. |
Payment:
We can accept T/T, L/C, Western Union, and Money Gram, you can choose the way you like.
Please make sure that you have completed all the detailed information like contact person, address, zip code, and telephone number when filling in your information.
Delivery Time:
3 -7 days after receiving your payment(according to your quantity).
Feedback:
Buyer’s early confirmation will be highly appreciated after receiving the goods.
Because your feedback is vital to our business’s development, we sincerely invite you to leave positive feedback for us, if you are satisfied with our products and services.
Why choose RealRun?
1. RealRun has more than 10 years experiences in the electronic connectors area.
2. The goods with good quality and service are sold to more than 70 countries.
3. More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.
4. One of the biggest electronic connectors supplier in the China mainland.
