| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | IC1.778-nT 32T |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Insulator Flammability: | G.F+PPS UL 94V-0 | Contact Plating: | Gold/Tin Over Nickel |
|---|---|---|---|
| Pin Length: | Customization | Operation Temperature: | -40~+105℃ |
| Insulation Resistance: | 1000MΩ Min | Solding Temperature: | 260℃ ,10s Max |
| Rated Current: | 1.0Amp | Contact Resistance: | Max 10mΩ |
| High Light: | Round Holes Ic Socket Connector,1.778mm SMT Ic Socket Connector,PPS Female Socket Connector |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

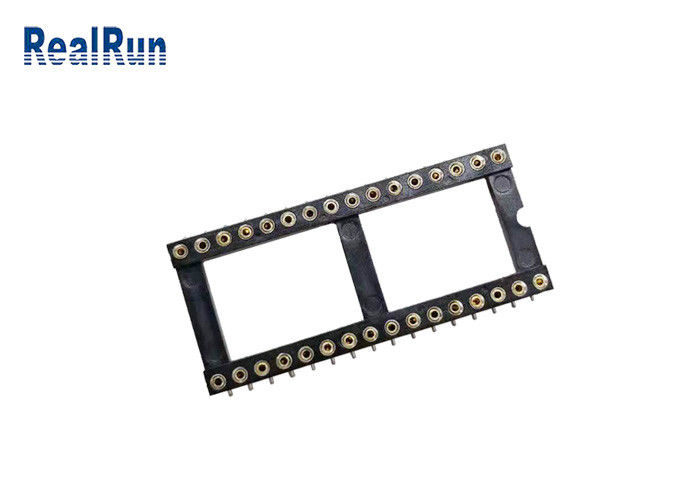

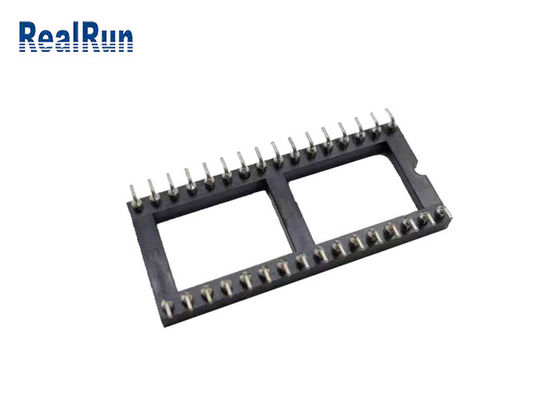

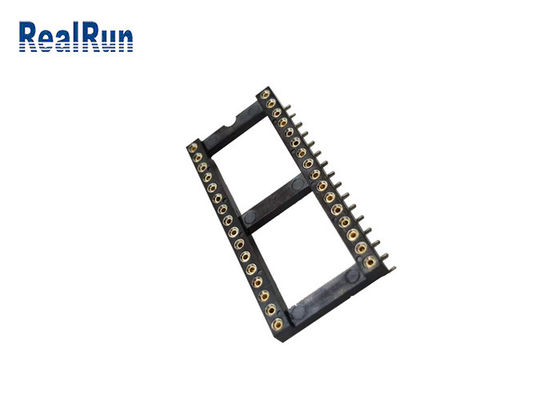

PPS 1.778mm SMT Type Round Holes Female Ic Socket Connector 32 Pin
|
Forces |
polished steel gauga Φ0.43mm |
|
Insertion |
2N typ |
| Withdrawal | 1N typ |
|
Operation Temperature |
-40℃ to +105℃ |
| Accepted in | φ0.40 to 0.56mm |
| Mechanical life | min 100cycles |
| Rated current | 1.0Amp |
| Contact resistance | max 10mΩ |
| Dielectric resistance | 1000MΩ Min |
| Solding Temperature | 260℃,10s max |
|
Sleeve |
Brass CuZn36Pb3(C36000) |
|
Contact Clip(4 finger) |
Beryllium copper(C17200) |
|
Insulator Material |
Black glass filled polyester PPS UL94V-0 |
|
Item name:1.778mm IC Socket |
||
|
product features: the use of a wide range of environmental protection, explosion-proof, moisture-proof |
||
|
product material: (UL94V-0) PPS black +GF |
||
|
scope of application: used in all kinds of consumer electronic appliances, electronic communication, power and industrial control, medical equipment, automotive electronics, solar energy and other industries, with the most sophisticated and reliable connections for customers. |
Drawings:
Why choose RealRun?
1. RealRun has more than 10 years experiences in the electronic connectors area.
2. The goods with good quality and service are sold to more than 70 countries.
3. More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.
4. One of the biggest electronic connectors supplier in the China mainland.
FAQ
Q1. Can I have a sample order for Connector?
