Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | FH1.27*3.8-2*nW 70W |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Color: | Black | Place Of Origin: | Guangdong,China |
|---|---|---|---|
| Brand Name: | RealRun | Pin（outer Sleeve）: | Brass, Machined CuZn38Pb |
| Clip（contact 6 Finger）: | Beryllium Copper,heat Treated | Pitch: | 1.27mm |
| Contact Plating: | Gold/Tin Over Nickel | Number Of Pins: | 70 Pin |
| Plastic Height: | 3.8 Mm | Application: | PCB |
| Current Rating: | 3Amps | Contact Resistance: | ≤4mΩ |
| Insulation Resistance: | ≥1000MΩ At V=100V | Operating Voltage: | 60VAC/DC |
| Soldering Temperature: | 245±5℃，5s | ||
| High Light: | Brass Round Pin Female Header,CuZn38Pb Round Pin Female Header,PA6T PPS Right Angle Pin Header |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

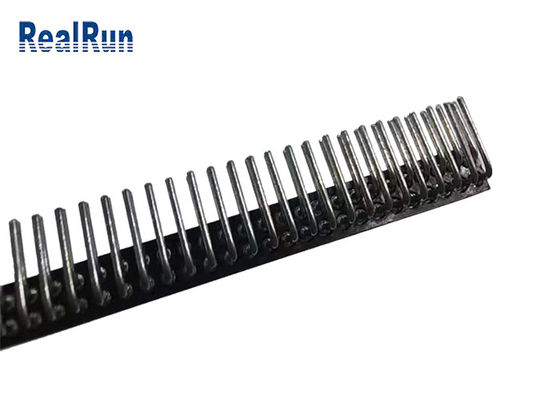

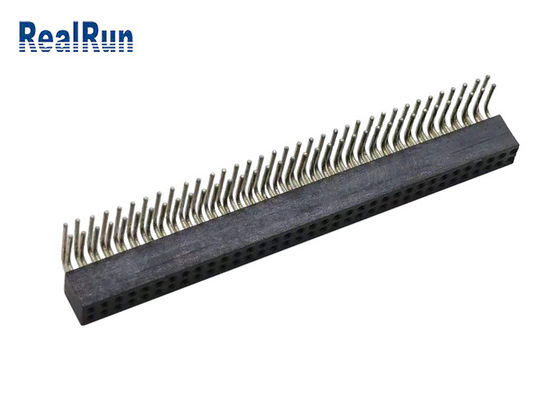

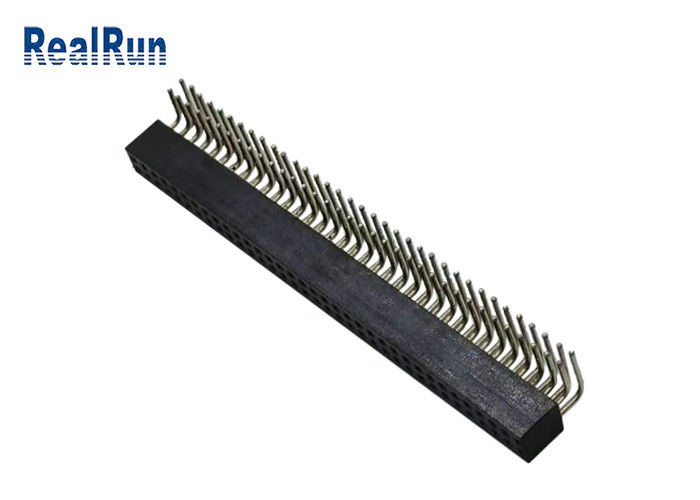

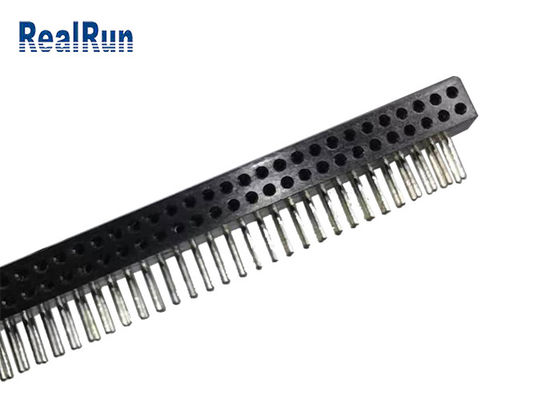

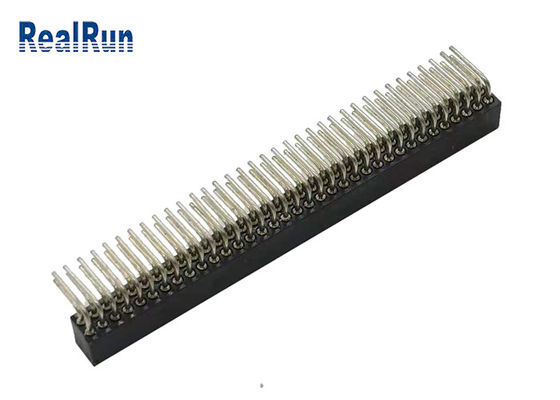

Brass CuZn38Pb 1.27 Machine Round Pin Female Header 70P Right Angle
Product features: high conductivity of brass conductor, durable, environmental protection and high temperature resistance plastic,stable tin or gold plating performance, oxidation resistance and external factors interference, long service life.
Product function: It is like a bridge, connecting the blocking current on both sides, realizing data transmission and signal interworking.
Application scope: Round female header is widely used in electronic product, digital camera, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc. as the most reliable connection board to board, wire to board provides.
|
Name |
Pin Header Connector |
|
Pitch |
1.27mm |
|
Type |
Right Angle Type |
|
Insulator Color |
Black Glass filled thermoplastic polyester |
|
Insulator |
PBT/PA6T/PPS/LCP UL94V-0 |
| Pin(outer sleeve) | Brass,machined CuZn38Pb |
| Clip(contact 6 finger) | Beryllium Copper, heat treated |
|
Place of Origin |
Guangdong,China |
| Brand Name | RealRun |
|
Contact Plated |
Gold/Tin over Nickel |
|
Number of Pins |
70 Pin |
| Current rating | 3Amps |
| Contact resistance | ≤4mΩ |
| Insulation resistance | ≥1000MΩ at V=100V |
| Operating voltage | 60VAC/DC |
| Soldering temperature | 245±5℃,5s |
|
Packing |
Bag/Reel/Tube/Tray Packing |
|
OEM/ODM |
Accepted |
Please feel free to contact us and we will send you the drawings you need.
How to Packing ?
We provide flexible packaging methods to meet different requirements. For Female Header connector, there are four methods of packaging:
1. Tray Packing, suitable for manual assembly.
2. Tube Packing, suitable for manual assembly.
3. Reel Packing with tape, suitable for automatic machine producing.
4. Reel Packing with Cap, suitable for automatic machine producing.
FAQ
Q: Do you provide samples?
A: Yes, we can provide some free samples, but you need to pay the freight.
Q: Do you make the products by yourself?
A: Yes, we are factories. Most of our products are made by ourselves.
Q: How to send you drawing and pictures?
A: Send drawings and pictures to us through the online chat function of the platform.It's on the right side of the interface→
Q: When can i get the reply?
A: We will repliy your inquiry within 12 hours, please attention check you email.
Q: When i can get quotation?
A: After we confirm the products with you, we will offer you a quotation, so please attention check our reply.
Q: How long of your delivery?
A: Usually, if in stock 3-7 workdays,no stock 7-10 workdays,it depends on your quantity.
Q: Have you checked the goods before delivery?
A: Yes, we have a comprehensive inspection before delivery.
