Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | FH1.27*3.8-2*nP 70Pin |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Color: | Black | Place Of Origin: | Guangdong,China |
|---|---|---|---|
| Brand Name: | RealRun | Sleeve/Contact: | Brass H59-3 |
| Clip（4 Finger）: | Beryllium Copper,heat Treated | Pitch: | 1.27mm |
| Contact Plating: | Gold/Tin Over Nickel | Number Of Pins: | 70 Pin |
| Plastic Height: | 3.8 Mm | Application: | PCB |
| Current Rating: | 1.0A | Contact Resistance: | 20mΩ Max At DC 1.0A |
| Insulation Resistance: | 1000MΩ Min At DC 500V | Withstanding Voltage: | 500VAC/minute |
| Soldering Temperature: | 245±5℃，5s | Operation Temperature: | -40℃ To +105℃ |
| High Light: | PPS LCP Round Female Pin Header,Round Female Pin Header UL94V-0,Dual Row Pin Header PA6T |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

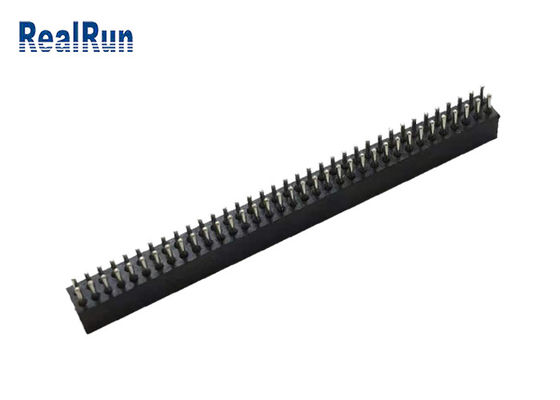

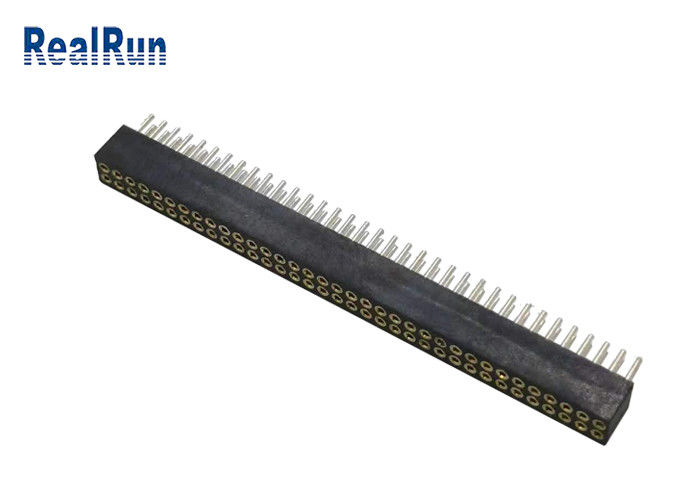

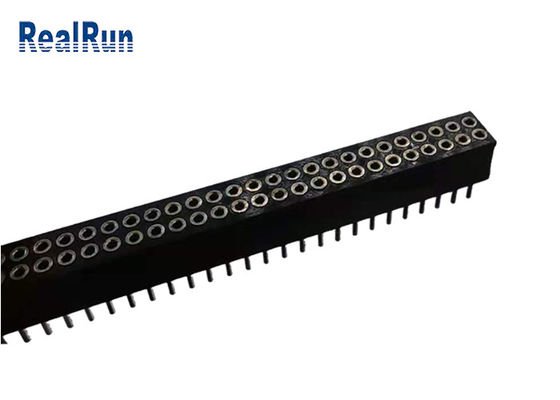

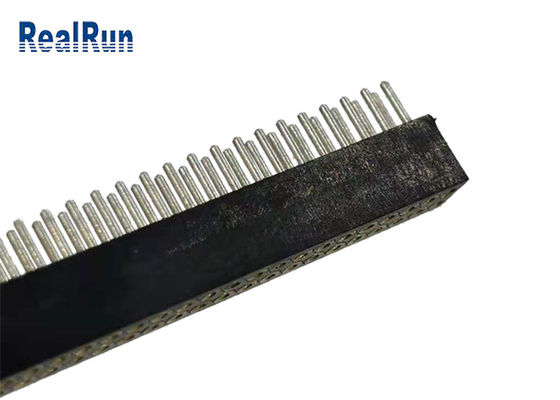

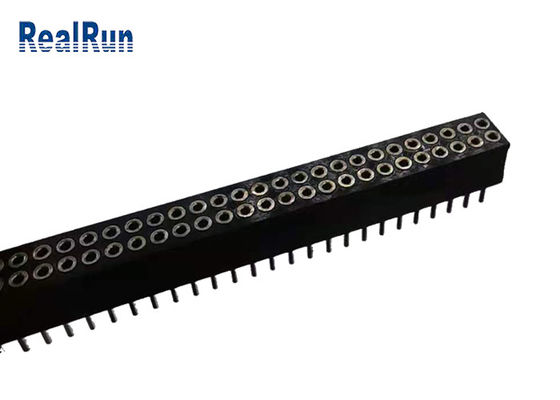

Brass H59-3 1.27 Round Pin Dual Row DIP 70 Pin Female Header Polyester UL94V-0
Product features: high conductivity of brass conductor, durable, environmental protection and high temperature resistance plastic,stable tin or gold plating performance, oxidation resistance and external factors interference, long service life.
Product function: It is like a bridge, connecting the blocking current on both sides, realizing data transmission and signal interworking.
Application scope: Round female header is widely used in electronic product, digital camera, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc. as the most reliable connection board to board, wire to board provides.
|
Name |
Pin Header Connector |
|
Pitch |
1.27mm |
|
Type |
Straight/DIP Type |
|
Insulator Color |
Black Glass filled thermoplastic polyester |
|
Insulator |
PBT/PA6T/PPS/LCP UL94V-0 |
| Pin(outer sleeve) | Brass H59-3 |
| Clip(contact 6 finger) | Beryllium Copper C17200 |
|
Place of Origin |
Guangdong,China |
| Brand Name | RealRun |
|
Contact Plated |
Gold/Tin over Nickel |
|
Number of Pins |
70 Pin |
| Current rating | 1.0A |
| Contact resistance |
20mΩ Max at DC 1.0A |
| Insulation resistance | 1000MΩ Min at DC 500V |
| Withstanding voltage | 500V AC/minute |
| Operation Temperature | -40℃ to+105℃ |
|
Packing |
Bag/Reel/Tube/Tray Packing |
|
OEM/ODM |
Accepted |
Please feel free to contact us and we will send you the drawings you need.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: What’s the delivery time?
A: It usually takes about 5~8 workdays to produce the products.
Q: If I don't have any drawings, can you still quote my product?
A: Yes, just provide as many details as possible about your product and quoting department can get started on your quote. As an added service, our qualified engineering staff can produce drawings.
Q: Is OEM & ODM available?
A: OEM&ODM are welcome.
Why choose RealRun?
1. Passed ISO9001, ISO14001, ROHS, CE, UL,Reach certification
2. All products are shipped through ROHS test, coating test, salt spray test
3. Introduce a complete set of excellent and advanced production equipment from abroad, fully automatic production, high efficiency and high output
4. In terms of price, our unit price is only 1 / 5 of the imported connector
5. Independent product R & D, product design and mold design common products 15 days sample delivery
