Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | IC2.54-nP 6 Pin |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Insulator: | PBT/PA6T UL94V-0 | Pin Length: | Customization |
|---|---|---|---|
| Insulation Resistance: | 1000MΩ Min | Application: | PCB |
| Mounting Type: | DIP/Straight | Pitch: | 2.54mm |
| Ambient Temperature: | -55℃~+105℃ | Contact Resistance: | 20mΩ Max |
| Current Rating: | 1A/Pin | Solder Time And Temperature: | ≤235℃，≤3s |
| Withstanding Voltage: | 1000VAC60s | Fog Test: | No Rust For 24 Hours |
| High Light: | UL94V-0 Square Pin Female Header,PA6T Square Pin Female Header,180° Straight PCB Female Header |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

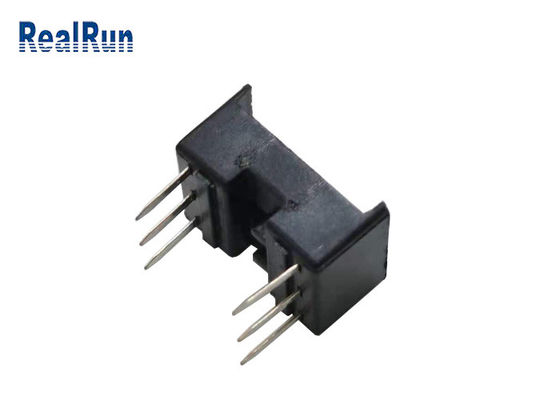

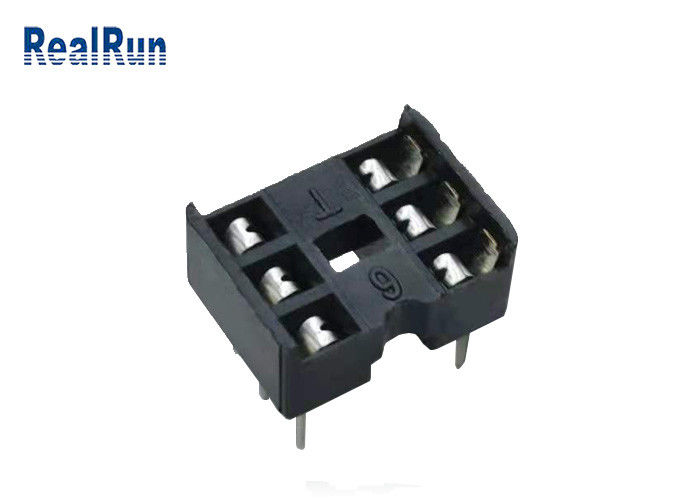

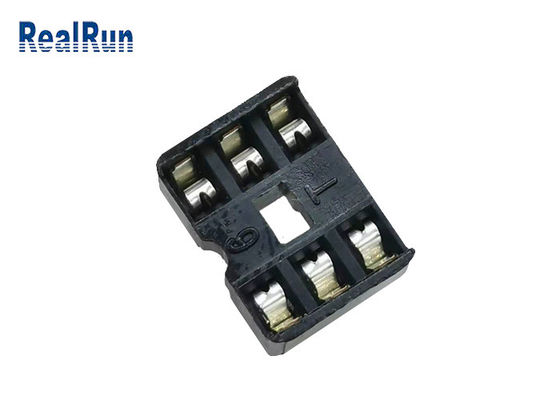

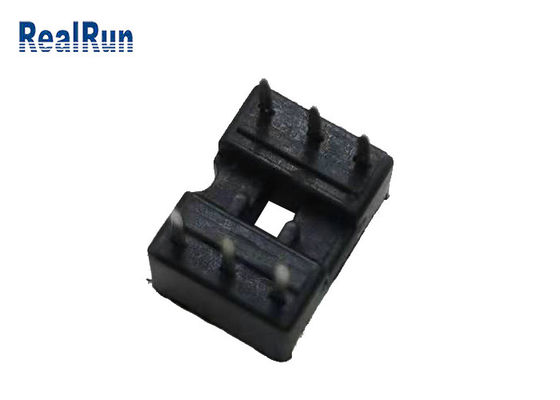

2.54Mm IC Socket 2*3P 180° Straight Square Pin female Header 7.62 RoHS
| Place of Origin | Guangdong,China |
| Brand Name | RealRun |
| Pitch | 2.54mm |
| Row spacing | 7.62mm |
|
Contact Resistance |
20mΩ Max |
|
Current Rating |
1A/Pin |
|
Ambient Temperature |
-55℃ to +105℃ |
|
Solder Time and Temperature |
≤235℃,≤3s |
| Withstanding Voltage | 1000VAC60s |
| Fog Test | No rust for 24 hours |
| Temperature of Test Box | (35±2)℃ |
|
06~18P |
Insulatora without center bar |
|
20~28P |
Insulatora with center bar |
|
Item name: 2.54mm IC socket connector |
||
|
product features: the use of a wide range of environmental protection, explosion-proof, moisture-proof |
||
|
product material: PBT (UL94V-0) |
||
|
scope of application: used in all kinds of consumer electronic appliances, electronic communication, power and industrial control, medical equipment, automotive electronics, solar energy and other industries, with the most sophisticated and reliable connections for customers. |
FAQ
Q1. Can I have a sample order for Connector?
Shenzhen RealRun Electronic Co., Ltd established in May of 2005, specializes in operating connectors. Main products: Pin header, Female header, Box header, Ejector header, IDC series, IC socket, single and double row round hole socket, FFC/FPC connector and SD socket, FFC cable, flat ribbon cable, RJ45 and RJ11, etc.
Products are mainly used in:instrumentation, communication, security, medical equipment, computer motherboards, program-controlled switch, digital camera, LED photoelectricity, etc.
The face of strong demand customization, our strong R&D center, mold manufacturer and processing center, which can quickly grasp customer needs, providing OEM/ODM products with the most reliable product and precise connectors for different customers.
