| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | IC2.54-nP 24 Pin |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Insulator: | PBT/PA6T UL94V-0 | Pin Length: | Customization |
|---|---|---|---|
| Insulation Resistance: | 1000MΩ Min | Application: | PCB |
| Mounting Type: | DIP/Straight | Pitch: | 2.54mm |
| Ambient Temperature: | -55℃~+105℃ | Contact Resistance: | 20mΩ Max |
| Current Rating: | 1A/Pin | Solder Time And Temperature: | ≤235℃，≤3s |
| Withstanding Voltage: | 1000VAC 60s | Fog Test: | No Rust For 24 Hours |
| Temperature Of Test Box: | (35±2)℃ | Insulator Base: | PBT |
| High Light: | 1000VAC IC Socket Connector,24P Header IC Socket Connector,UL94V-0 PBT Connector Header |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

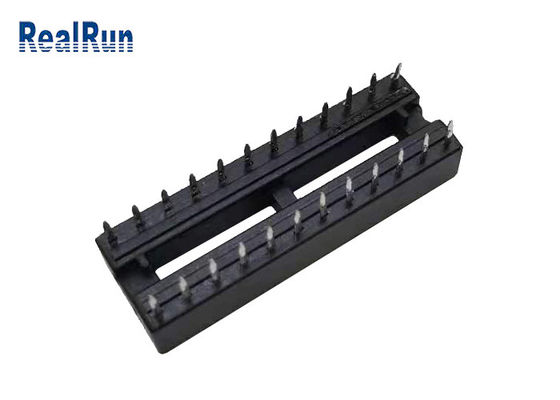

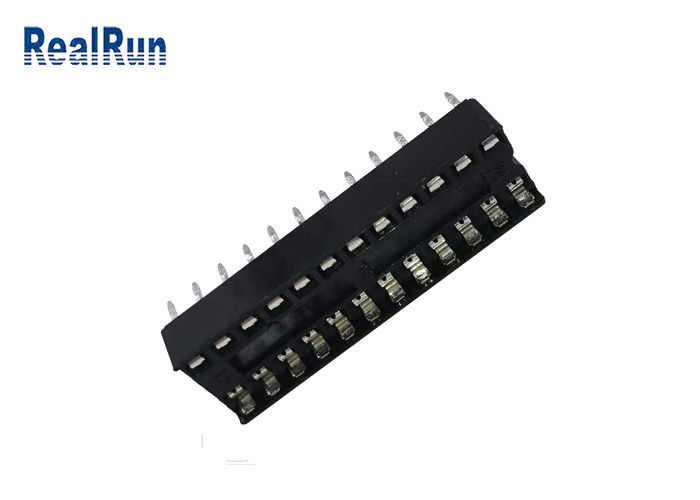

PCB Plate 2.54mm IC Socket Connector 24P Pin Header Square Holes Black With Center Bar
| Place of Origin | Guangdong,China |
| Brand Name | RealRun |
| Pitch | 2.54mm |
| Row spacing | 7.62mm |
| Insulator Base | PBT |
|
Contact Resistance |
20mΩ Max |
|
Current Rating |
1A/Pin |
|
Ambient Temperature |
-55℃ to +105℃ |
|
Solder Time and Temperature |
≤235℃,≤3s |
| Withstanding Voltage | 1000VAC60s |
| Fog Test | No rust for 24 hours |
| Temperature of Test Box | (35±2)℃ |
|
06~18P |
Insulatora without center bar |
|
20~28P |
Insulatora with center bar |
|
Item name: 2.54mm IC socket connector |
||
|
product features: the use of a wide range of environmental protection, explosion-proof, moisture-proof |
||
|
product material: PBT (UL94V-0) |
||
|
scope of application: used in all kinds of consumer electronic appliances, electronic communication, power and industrial control, medical equipment, automotive electronics, solar energy and other industries, with the most sophisticated and reliable connections for customers. |
How to order?
1. please tell us what type and quantity you need；
2. we will make a PL for you to confirm the order details ;
3. when we confirmed everything, can arrange the payment;
4. finally we deliver the goods within the stipulated time;
FAQ
Q: How long will it take to receive the goods?
A: It depends on the quantity of your order, usually 3-7 workdays if the goods are in stock.
Q: Do you check the products before shipment?
A: Yes, before shipment, we will check the products in multiple layers to ensure that there are no quality problems, and then package them out of the warehouse.
Q: If there is a product quality problem, what should you do?
A: This kind of situation will not happen basically. In case it happens, we will negotiate with you about the solution and reach an agreement.We will bear the return and exchange costs incurred by the product quality.
Q: Where is your factory, can i visit it?
A: Yes, welcome. our company(Weizan Electronics) is in Juhui Industrial Park, Yutang street, Tianliao village, Guangming New District, Shenzhen, China.
