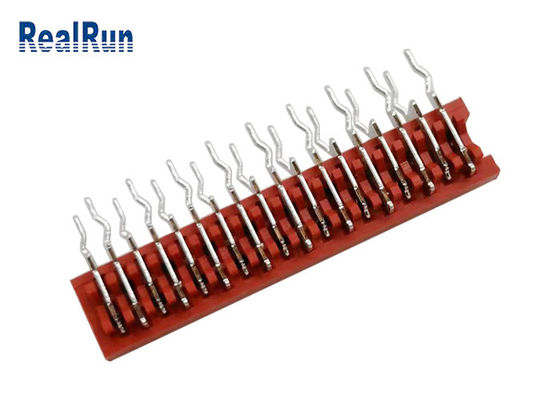

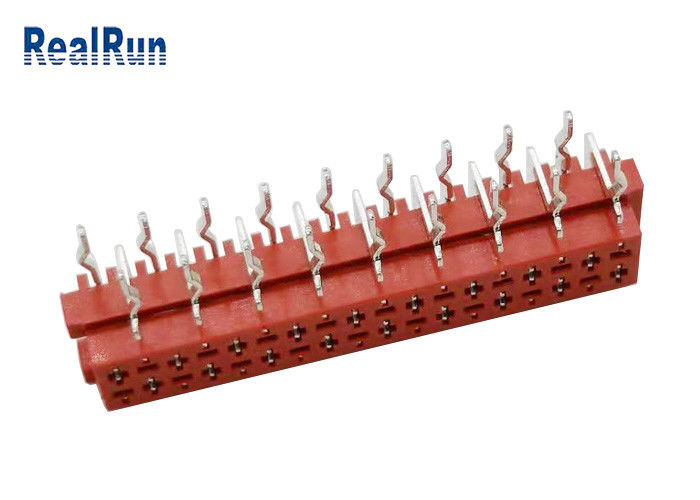

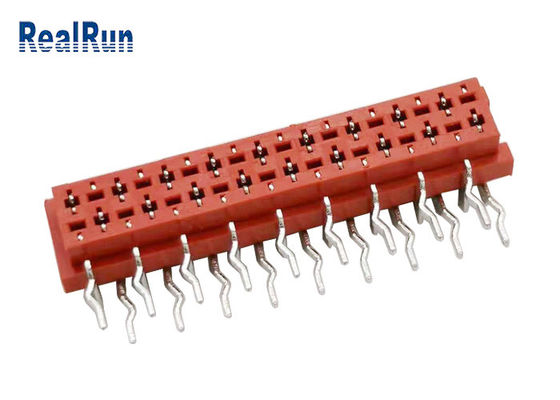

RoHS Pass Red 1.27 Mm Idc Connector Socket Female 18P 90° Bend Insert Without Ear

RoHS Pass Red 1.27 Mm Idc Connector Socket Female 18P 90° Bend Insert Without Ear

  • RoHS Pass Red 1.27 Mm Idc Connector Socket Female 18P 90° Bend Insert Without Ear
  • RoHS Pass Red 1.27 Mm Idc Connector Socket Female 18P 90° Bend Insert Without Ear
  • RoHS Pass Red 1.27 Mm Idc Connector Socket Female 18P 90° Bend Insert Without Ear
RoHS Pass Red 1.27 Mm Idc Connector Socket Female 18P 90° Bend Insert Without Ear
Product Details:
Place of Origin: China
Brand Name: RealRun
Certification: ISO9001, SGS, Rohs, Reach
Model Number: IDC1.27-nP 18P
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Tray Packing
Delivery Time: 3~7workdays
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 100000pcs/day
Contact Now
Detailed Product Description
Place Of Origin: Guangdong,China Brand Name: RealRun
Color (Insulator): Red Pitch: 1.27mm
Voltage Rating: 500V AC/DC Current Rating: 1A AC/DC
Withstanding Voltage: 1000V AC/minute Temperature Range: -40℃~+105℃
Insulation Resistance: ≥1000MΩ Contact Resistance: ≤20mΩ
After Environmental Testing: ≤30mΩ
High Light:

Red 1.27mm Idc Connector

,

Phosphor Bronze Idc Connector

,

18P Socket Female Connector

Red 1.27 Mm Idc Connector Socket Female 18P 90° Bend Insert Without Ear


Current Rating

1A AC/DC

Contact Resistance

20mΩ Max

Withstanding Voltage

1000V AC/DC

Insulation Resistance

1000mΩ Min

Operation Temperature

-40℃ to +105℃

Contact Material

phosphor Bronze/brass

Contact Plating

Gold or Tin over Nickel

Insulator Material

PBT/PA6T/Nylon+30%GF UL94V-0



Product Name: IDC connector

1. Product features: contact system has been used to the level of automation test impact, vibration, and temperature cycling also proved their reliability and ruggedness. High temperature insulator up to 260 degrees Celsius reflow soldering process

2. Insulating material: nylon 46:UL94V0 contact materials: phosphor bronzeTin plating: nickel PBT

3. Scope of application: to be blocked in the circuit between the circuit or isolated bridge of communication, so that the current flow of the circuit, and achieve the intended function. 1 Introduction to PCB power supply and signal 2 discrete wire assembly is connected directly to the PCB


RoHS Pass Red 1.27 Mm Idc Connector Socket Female 18P 90° Bend Insert Without Ear 0



RoHS Pass Red 1.27 Mm Idc Connector Socket Female 18P 90° Bend Insert Without Ear 1


OEM/ODM Capability
Our complete range of products manufactured according to ISO 9001:2000 guidelines is at your disposal.
OEM services encompass buyers logo or label, designs services plus a whole after sales support package.


Payment Terms
There are many payment methods available such as D/A, D/P, T/T and Paypal.

FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. for all of the part are be use professional anti-electrostatic packaging,compressive packing.
Q2. What is your terms of payment?
A: T/T 100% before delivery. wester union ,Money gram ,Escrow ,for the customer who cooperate with us more than 6-12months ,we will offer limited Net payment .
Q3. What is your terms of delivery?
A: EXW, FOB,COC.
Q4. How about your delivery time?
A: Generally, it will take 3~7 days after receiving your payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample quantity if we have ready parts in stock, but the customers have to pay
the courier cost,for the samples cost depend on the items.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.Thanks for all of you to reading this ,we will be one of your best supplier !
