Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | IDC2.54-10P-50Mm |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 2.54mm | Insulator Material: | PA6T/PA9T/LCP |
|---|---|---|---|
| Application: | PCB Board | Insulator Material: | PA6T//PA9T/LCP |
| Processing Temperature: | 260±5℃ For 10 Seconds | Operating Temperature: | -40~105℃ |
| High Light: | 2×5 Header IDC Flat Cable,PCB Board IDC Flat Cable,PA6T IDC Flat Ribbon Wire |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

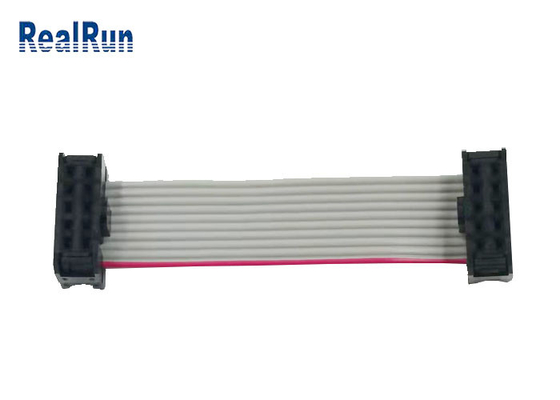

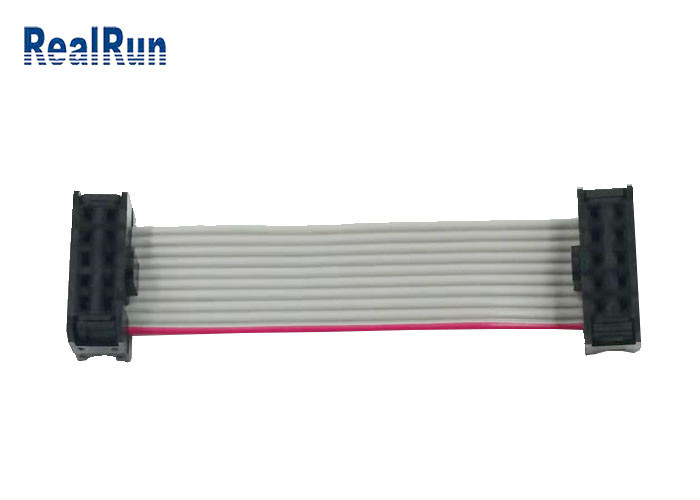

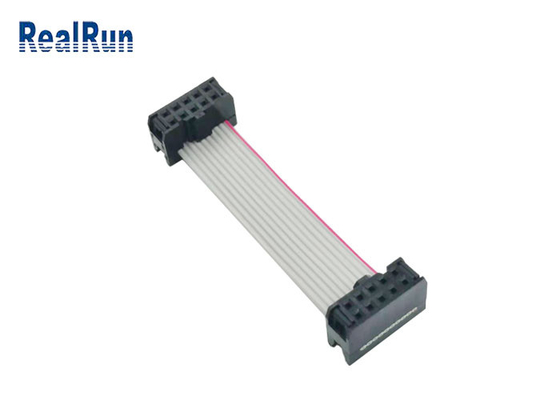

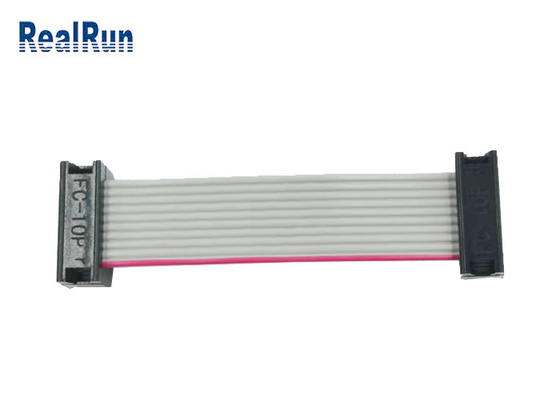

ISO9001 2.54Mm Idc Cable Flat Ribbon Wire Connector 2×5 Header 10 Conductor
| Connector | IDC Flat Cable |
| Pins available | 06Pins to 40Pins |
| Number of Row | Dual |
| Terminal Finish | Gold over Nickel |
| Cable | UL2651 28AWG 1.27mm Pitch 16 Pins |
| Cable Pins available | 06Pins to 64Pins |
| Color | Gray |
| Length | Customization |
| Style | Wire to Board |
| Crimp Orientation | Same Orientation(First Pin is Red Line) |
| Crimp Tools | Semi-Automatic Machine |
| Test | 100% Open & Short Test |
| Certificate | UL Authentication |
| Equivalent Brand | TE Connectivity/AMP/FCI |
| Packaging | PE Bag |
| Shipping method | Fedex/DHL/UPS/TNT or Specify Forwarder |
Description
1. IDC cable could be customized 1.0mm, 1.27mm, 2.54mm pitch all available.
2. They are often used for connections to PCBs and for links either within equipment or externally. IDC cables have the best ability both in compactness and manageability.
3. We could also provide all kinds of types, such as standard grey, color-coded (rainbow) Ribbon in laminated or edge boded form and specials such as twisted pair (twist-n-flat), round jacketed (round-n-flat) and screened ribbon cables.
How to distinguish cable direction
1. Same direction
Both bump at the same way.
2. Opposite direction
Both bump at the oppsite way.
3. Up and dowm direction
Both bump at the different way. For the details, you can check as below image description.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q. Which payment can be accepted:
A: 1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Q: Are you manufacture of trading company?
A: We are a manufacture in Shenzhen, China.
Q: What’s the delivery time?
A: It usually takes about 3~7 working days to produce the products.
Q: If I don't have any drawings, can you still quote my product?
A: Yes, just provide as many details as possible about your product and quoting department can get started on your quote. As an added service, our qualified engineering staff can produce drawings.
