Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | 0.5-24P-150mm |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Gender: | FFC Cable | Pitch: | 0.5/0.8/1.0/1.25/2.54 |
|---|---|---|---|
| Side Contact: | A Or B | Length: | 20 To 10000mm(customized) |
| Conductor: | Tin-plated, Gold-plated, Multi-shield Parts | Supporting Tape Material: | PET |
| High Light: | flexible flat wire,flex ribbon cable |
||

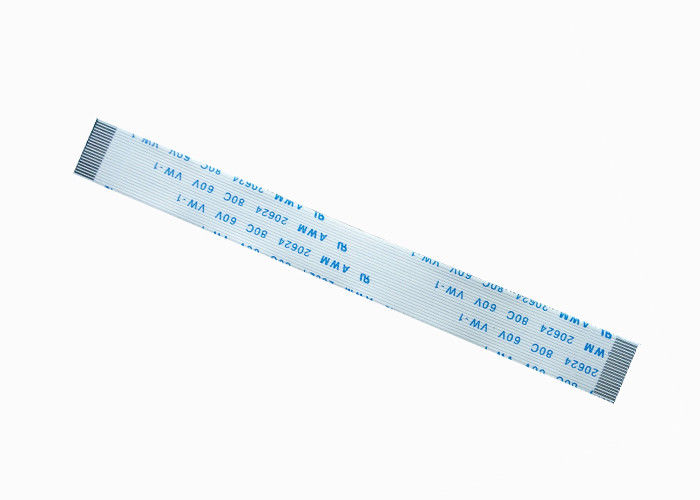

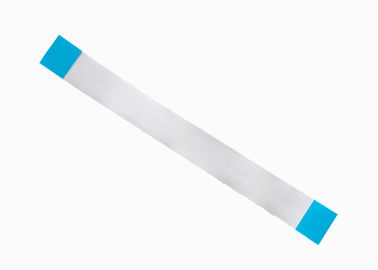

Custom 0.5mm FFC FPC Ribbon Cable Flexible Flat Wire To Connection Data
Description
Flexible flat cable is new type connection data cable, which made by PET insulation and thinner copper conductor.
They widely used in consumer electronics and more and more choose by every industry customer.
Generally, there are 0.5mm/1.0mm/1.25mm/2.0mm/2.54mm and so on.
Product Application
FFC Cable widely used in the connection between printing head and main board of various printers, signal transmission and board connection of plotter, scanner, copier, audio, liquid crystal appliance, fax machine, various DVD player and other products. In modern electrical equipment, almost nowhere.
| Name | FFC Cable |
| Pitch | 0.5mm |
| Type | DIP type |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 3A |
| Contact Resistance(max) | 4m ohm Max |
| Operating Voltage | 60V AC/DC |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact materials | Gold/Tin plating |
| Contact Plated | Tin or gold over nickel |
| Insulator material | PA6T |
| Processing Temperature | -40~105℃ |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
How to distinguish cable direction
1. Same direction
Both bump at the same way.
2. Opposite direction
Both bump at the oppsite way.
3. Up and dowm direction
Both bump at the different way. For the details, you can check as below image description.
Packaging Details
Most product not have MOQ,the common connectors are in stock.Small order can be accepted.
Box/Tape & Reel/ Tray/ Tube/ PE Bag.
special Packing depend on customer.
Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method.
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.
Sincerely welcome customers home and abroad to discuss cooperations! Sincerely thanks to our customers for more than 10 years of cooperation and guidance, we will be strict in management of the production of science and technology, good quality, as always, to serve you.
