Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | 0.5-50P-100mm |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Color: | White/black | Pitch: | 0.5/0.8/1.0/1.25/2.54 |
|---|---|---|---|
| Side Contact: | A Or B | Length: | 20 To 10000mm(customized) |
| Operating Temperature: | -40~105℃ | Conductor: | Tin-plated, Gold-plated, Multi-shield Parts |
| High Light: | flexible flat wire,flexible ribbon cable |
||

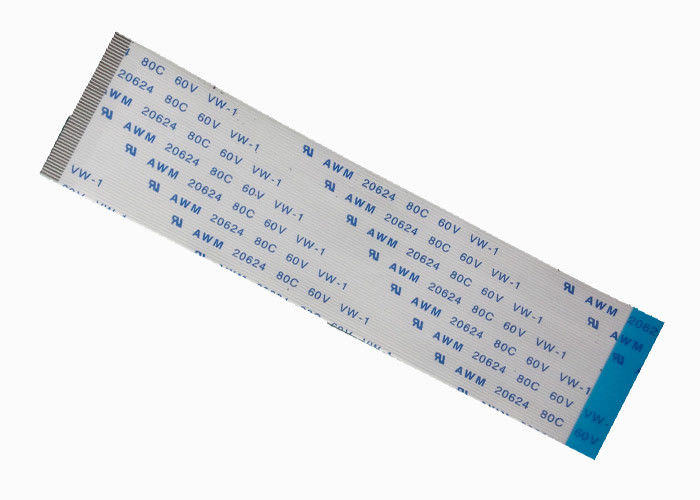

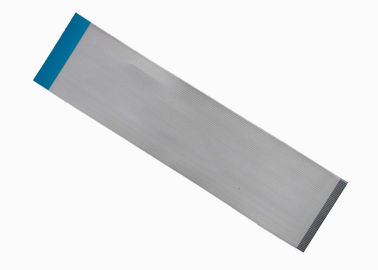

Shielded Ffc Cable Dividing 50 Pin Withstand Voltage 500V For Electronic
|
Number of Conductor |
50 Pins |
|
Pitch |
0.5mm±0.10 |
|
Width |
17mm±0.15 |
|
Total Pitch |
15mm±0.10 |
|
Margin |
1.0mm±0.15 |
|
Total Length |
XXmm±3mm |
|
Terminal Thickness |
0.30±0.05 |
|
Insertion Thickness |
0.121 ±0.02 |
|
Conductor Strip Length |
4.0±1.0mm |
|
Supporting Tape Length |
8.0±2.0mm |
|
Conductor Thickness |
0.035±0.005 |
|
Conductor Width |
0.65±0.03 |
|
Slanting |
＜0.50 |
|
Supporting Tape Color |
Blue |
|
Supporting Tape Spec |
0.225mm |
|
Insulation Film Spec |
43um |
What's the Flexible Flat Cable(FFC)
Flexible flat cable is new type connection data cable, which made by PET insulation and thinner copper conductor.
They widely used in consumer electronics and more and more choose by every industry customer.
Generally, There are 0.5mm/1.0mm/1.25mm/2.0mm/2.54mm and so on.
Product Application
FFC Cable widely used in the connection between printing head and main board of various printers, signal transmission and board connection of plotter, scanner, copier, audio, liquid crystal appliance, fax machine, various DVD player and other products. In modern electrical equipment, almost nowhere.
Packaging Details
Most product not have MOQ,the common connectors are in stock.Small order can be accepted.
Box/Tape & Reel/ Tray/ Tube/ PE Bag.
special Packing depend on customer.
Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method.
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: Which payment can be accepted?
A: 1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Q: Are you manufacture of trading company?
A: We are a manufacture in Shenzhen, China.
Q: What’s the delivery time?
A: It usually takes about 3~7 working days to produce the products.
