Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | 0.5-50P-150mm |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Color: | White/black | Packing: | Tray Packing |
|---|---|---|---|
| OEM/ODM: | Accepted | Length: | 20 To 10000mm(customized) |
| No.of Pins: | 2-50pin(customized) | Conductor: | Tin-plated, Gold-plated, Multi-shield Parts |
| High Light: | flex ribbon cable,flexible ribbon cable |
||

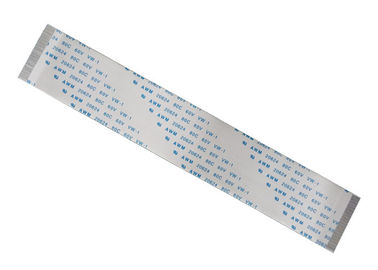

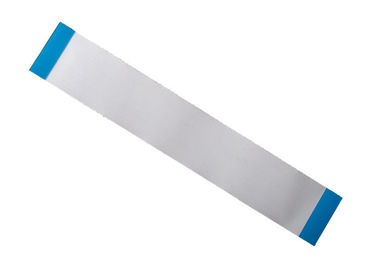

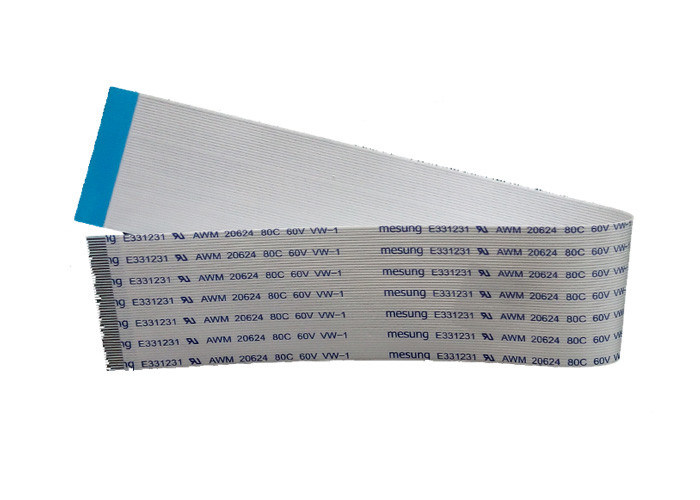

Tin Plated Custom Flat Flex Cable A Type 50 Pin Flexible Flat Wire 150mm
|
Number of Conductor |
50 Pins |
|
Pitch |
0.5mm±0.10 |
|
Width |
17mm±0.15 |
|
Total Pitch |
15mm±0.10 |
|
Margin |
1.0mm±0.15 |
|
Total Length |
XXmm±3mm |
|
Terminal Thickness |
0.30±0.05 |
|
Insertion Thickness |
0.121 ±0.02 |
|
Conductor Strip Length |
4.0±1.0mm |
|
Supporting Tape Length |
8.0±2.0mm |
|
Conductor Thickness |
0.035±0.005 |
|
Conductor Width |
0.65±0.03 |
|
Slanting |
＜0.50 |
|
Supporting Tape Color |
Blue |
|
Supporting Tape Spec |
0.225mm |
|
Insulation Film Spec |
43um |
What's the Flexible Flat Cable(FFC)
Flexible flat cable is new type connection data cable, which made by PET insulation and thinner copper conductor.
They widely used in consumer electronics and more and more choose by every industry customer.
Generally, There are 0.5mm/1.0mm/1.25mm/2.0mm/2.54mm and so on.
Product Application
FFC Cable widely used in the connection between printing head and main board of various printers, signal transmission and board connection of plotter, scanner, copier, audio, liquid crystal appliance, fax machine, various DVD player and other products. In modern electrical equipment, almost nowhere.
Why choose RealRun?
1. RealRun has more than 10 years experiences in the electronic connectors area.
2. The goods with good quality and service are sold to more than 70 countries.
3. More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.
4. One of the biggest electronic connectors supplier in the China mainland.
5. Through ISO9001, ISO14001, ROHS, CE, reach, UL certification.
6. Main board to board, board to line, line to line, I / O, IC base, storage connector.
Packaging Details
Most product not have MOQ,the common connectors are in stock.Small order can be accepted.
Box/Tape & Reel/ Tray/ Tube/ PE Bag.
special Packing depend on customer.
Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method.
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.
