Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | 0.5-50P-150mm |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Color: | White/black | Pitch: | 0.5/0.8/1.0/1.25/2.54 |
|---|---|---|---|
| Side Contact: | A Or B | Contact Resistance(max): | 30m Ohm |
| Conductor: | Tin-plated, Gold-plated, Multi-shield Parts | Insulation Resistance(min): | 1000M Ohm |
| High Light: | flexible flat wire,flex ribbon cable |
||

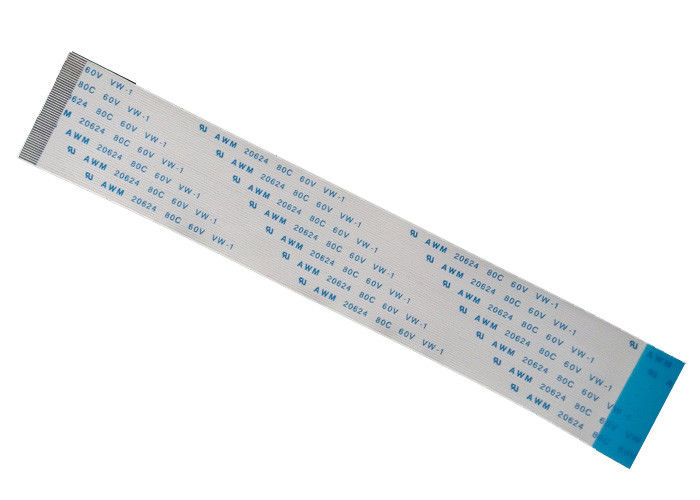

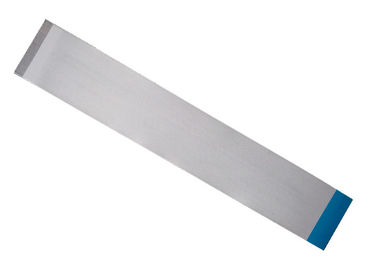

Printer 50 Pin FPC Ribbon Cable Tin Plated Slim Thin Ribbon FPC Cable
|
Number of Conductor |
50 Pins |
|
Pitch |
0.5mm±0.10 |
|
Width |
17mm±0.15 |
|
Total Pitch |
15mm±0.10 |
|
Margin |
1.0mm±0.15 |
|
Total Length |
XXmm±3mm |
|
Terminal Thickness |
0.30±0.05 |
|
Insertion Thickness |
0.121 ±0.02 |
|
Conductor Strip Length |
4.0±1.0mm |
|
Supporting Tape Length |
8.0±2.0mm |
|
Conductor Thickness |
0.035±0.005 |
|
Conductor Width |
0.65±0.03 |
|
Slanting |
＜0.50 |
|
Supporting Tape Color |
Blue |
|
Supporting Tape Spec |
0.225mm |
|
Insulation Film Spec |
43um |
What's the Flexible Flat Cable(FFC)
Flexible flat cable is new type connection data cable, which made by PET insulation and thinner copper conductor.
They widely used in consumer electronics and more and more choose by every industry customer.
Generally, There are 0.5mm/1.0mm/1.25mm/2.0mm/2.54mm and so on.
Product Application
FFC Cable widely used in the connection between printing head and main board of various printers, signal transmission and board connection of plotter, scanner, copier, audio, liquid crystal appliance, fax machine, various DVD player and other products. In modern electrical equipment, almost nowhere.
FFC alignment technical parameters
1. Number of conductors N: The number of copper conductors in the cable;
2. Spacing P: distance between two adjacent conductor centers;
3. Edge M: The distance between the center line of the outermost conductor and the edge of the row line;
4. Full spacing TP: distance between the outermost two conductor centers, TP = P *(N-1);
5. Total width W: distance between the two edges of the row, W = P *(N +1).
Packaging Details
Most product not have MOQ,the common connectors are in stock.Small order can be accepted.
Box/Tape & Reel/ Tray/ Tube/ PE Bag.
special Packing depend on customer.
Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method.
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.
