Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | FFC0.5-nP-L |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Gender: | FFC Cable | Color: | White/black |
|---|---|---|---|
| Pitch: | 0.5/0.8/1.0/1.25Mm | Side Contact: | A Or B |
| Operating Temperature: | -40~105℃ | No.of Pins: | 2-50pin(customized) |
| High Light: | 3A Flexible FPC Ribbon Cable,Tinned Connector FPC Ribbon Cable,PA6T Insulator FFC Cable |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

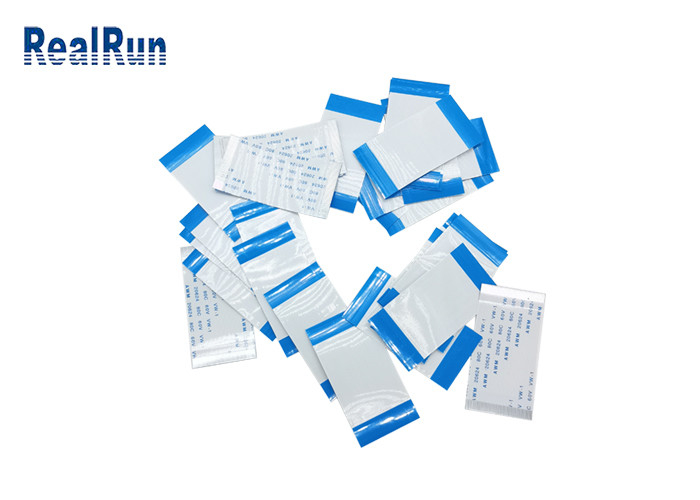

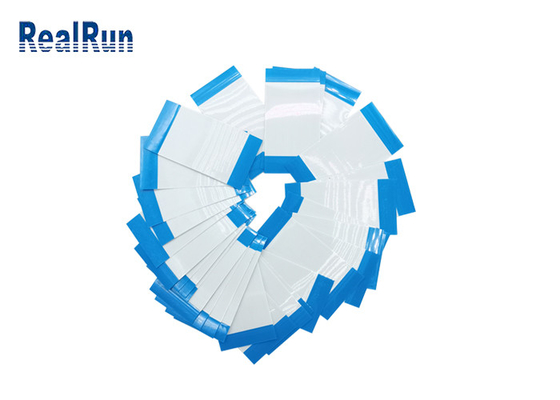

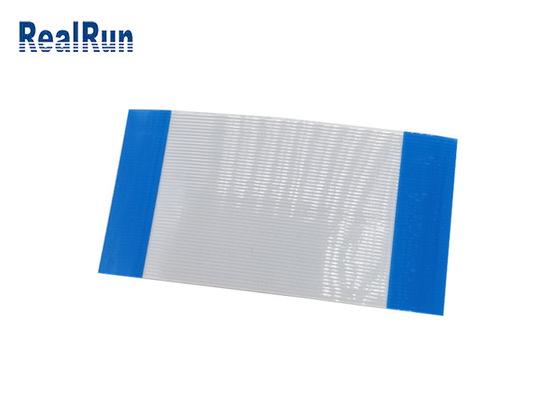

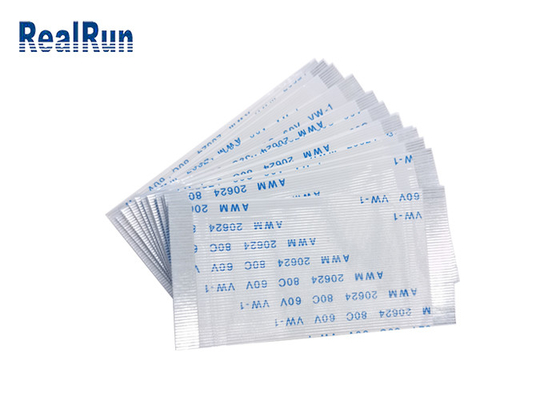

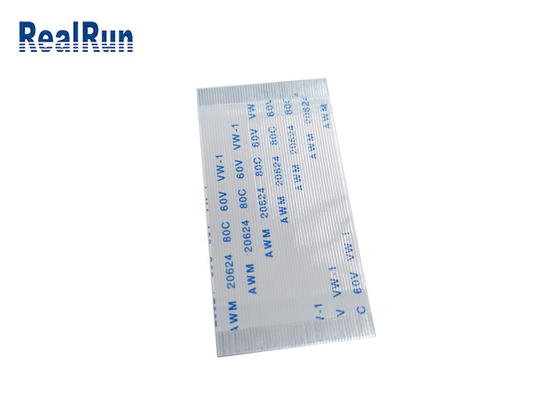

0.5 Mm Flat Flexible Ffc Fpc Cable Tinned Connector A Type 4/8 Mm Lcd
Flexible flat cable is new type connection data cable, which made by PET insulation and thinner copper conductor.
They widely used in consumer electronics and more and more choose by every industry customer.
Generally, there are 0.5mm/1.0mm/1.25mm and so on.
Product Application
FFC Cable widely used in the connection between printing head and main board of various printers, signal transmission and board connection of plotter, scanner, copier, audio, liquid crystal appliance, fax machine, various DVD player and other products. In modern electrical equipment, almost nowhere.
| Name | FFC Cable |
| Pitch | 0.5mm |
| Type | DIP type |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 3A |
| Contact Resistance(max) | 4m ohm Max |
| Operating Voltage | 60V AC/DC |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact materials | Gold/Tin plating |
| Contact Plated | Tin or gold over nickel |
| Insulator material | PA6T |
| Processing Temperature | -40~105℃ |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
Why choose RealRun?
1. RealRun has more than 15 years experiences in the electronic connectors area.
2. The goods with good quality and service are sold to more than 70 countries.
3. More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.
4. One of the biggest electronic connectors supplier in the China mainland.
5. Professional R & D, production, sales as one of the industrial companies.
6. With advanced production equipment and testing equipment abroad, with advanced product design, development and manufacturing capabilities.
7. Through ISO9001, ISO14001, ROHS, CE, reach, UL certification.
Packaging Details
Most product not have MOQ,the common connectors are in stock.Small order can be accepted.
Box/Tape & Reel/ Tray/ Tube/ PE Bag.
special Packing depend on customer.
Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method.
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.
